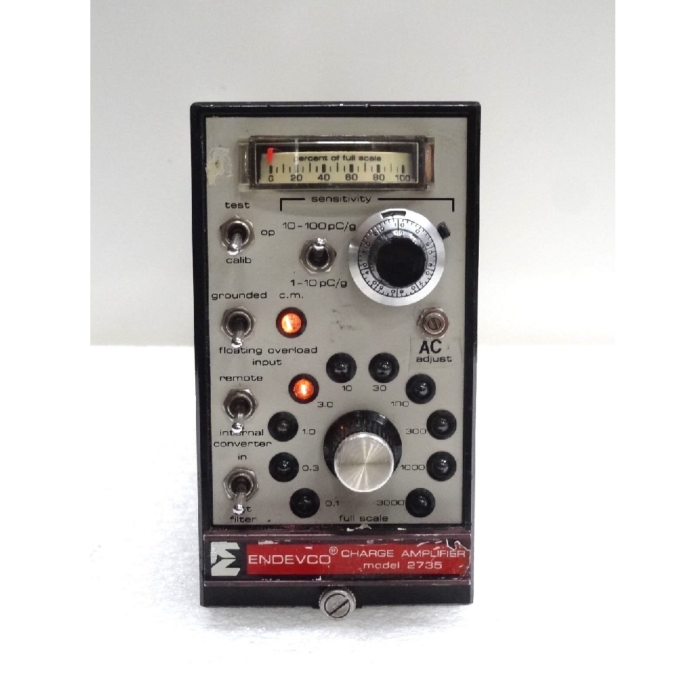

Endevco 2735 for Rent, Charger Amplifier, AC/DC Output: +10 Vdc
Charger Amplifier AC Output DC Output: +10 Vdc
Order #: 2735-RENT2
Mfg #: 2735
Call for price
Call for price
Endevco 2735 for Rent, Charger Amplifier, AC/DC Output: +10 Vdc
Charger Amplifier AC Output DC Output: +10 Vdc
Order #: 2735-RENT2
Mfg #: 2735
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Endevco 2735 Highlights
- Internally adjustable from 1.4 V pk to 20 V pk
Input Characteristics
- Grounded Mode
- Isolated Mode (floating)
Output Characteristics
- Output Connections: All outputs are single-ended with one side connected to circuit ground
- AC output: Internally adjustable from 1.4 V pk to 20 V pk. Factory set at 10 V rms unless otherwise specified on order
- DC output: +10 Vdc
Transfer Characteristics
- Ranges Full Scale for Transducer Sensitivity
- 1.0 to 10 pC/g - 1, 2, 10, 30, 100, 300, 1000, 3000 g pk
- 10 to 100 pC/g - 0.1, 0.3, 1.3, 10, 30, 100, 300 g pk
- Frequency Response: ±5%, 2Hz to 20kHz, minimum 2Hz to 50kHz, typical (reference 1000 Hz)
Power
- Line Voltage: 105 to 125 Vac, 50 to 400 Hz and 210 to 250 Vac, 50 to 400 Hz
Connections
- Input Connectors Transducer: Microdot S-50 Series or equivalent
- Output Connectors: BNC
