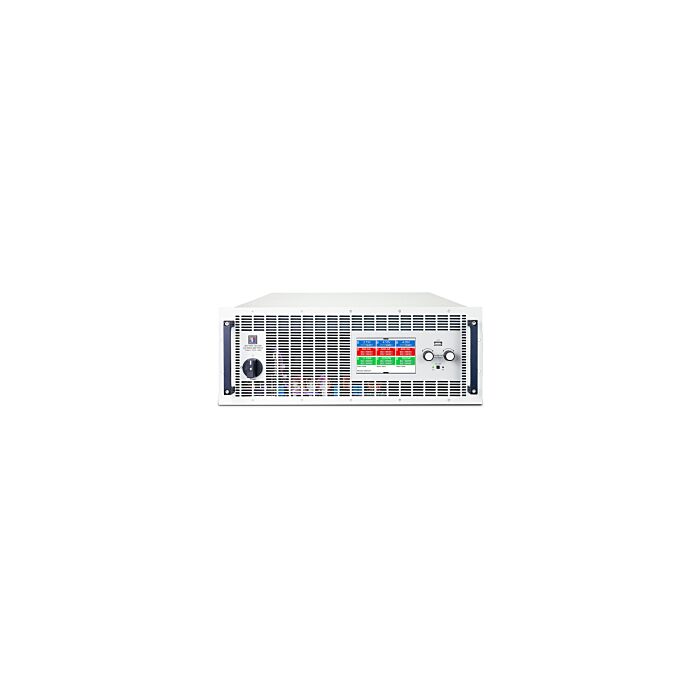

Elektro-Automatik BT20080-340 TRIPLE for Rent, Battery Tester, Triple Output, 80V, 340A (1020A max), 30kW

Product Highlights

The Elektro-Automatik BT20080-340 are two quadrant devices with 3 channels which can perform the function of a charger as well as that of an electronic load (discharging). In discharging mode the device is regenerative and feeds the energy back into the local grid with an efficiency of up to over 95%. The output per channel of the battery tester with regenerative energy recovery BT20080-340 Triple with a DC voltage of up to 60 V allows positive and negative currents of up to 340 A as a two quadrant device. The flexible output stages (autoranging) provide the user with a wide voltage, current and power range and hence a wider field of working than traditional battery tester.

A typical application for the Elektro-Automatik BT20080-340 battery tester with regenerative energy recovery from Elektro-Automatik is the testing of the electrical characteristics of a battery. The wide application spectrum covers cell, module or pack tests, the determination of the SOH (State-of-Health) for a second life classification as well as the End-of-Line (EOL) test. These applications put many demands on power electronics which are fulfilled by the BT20080-340 range. The excellent features of this device range are: measurement of voltage and current with the required accuracy and performance, reproducibility and reliability of these data and the flexible usability. Additional applications include the simulation of batteries as single cells, modules, or packs. These simulations aid in the optimal configuration of energy storage as well as the supplied components under test.
