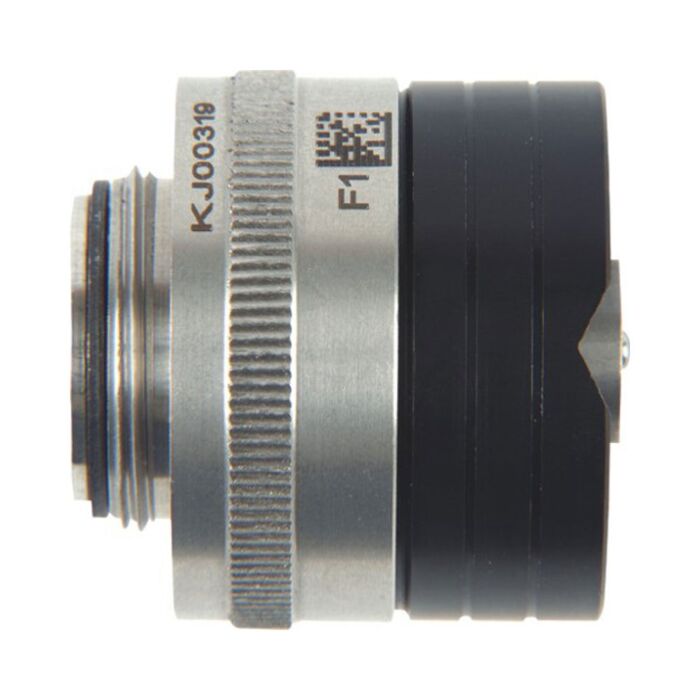

Elcometer Instruments Inc T456CF2P

Product Highlights

• Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.
• For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.
• Probe attaches to a separate gage to give it the performance and profile of an integral probe gauge.
• Range: 0-200 mils (0-5mm)
• Accuracy: ±1-3% or ±1.0 mil (±20µm)
• Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum convex surface radius - 4mm (0.16")
• Minimum concave surface radius - 60mm (2.36")
• Minimum headroom - 174mm (6.85")
• Minimum sample diameter: - 8mm (0.32")
