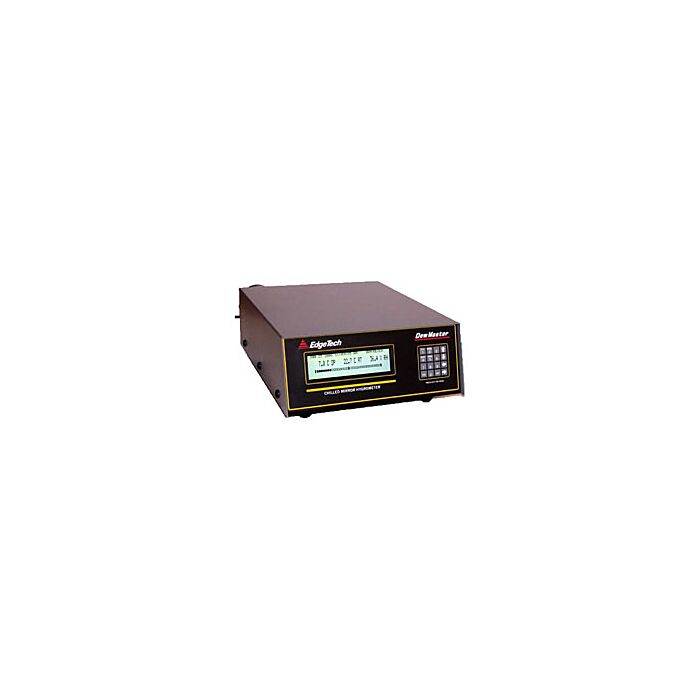

EdgeTech DM

Product Highlights

• Edgetech field-proven chilled mirror technology.
• One, two or three stage sensors available - integral or remote from controller. NIST traceable calibration certificate.
• Depression range choice of either 45, 65 or 95°C . (one, two or three-stage cooling)
• Automatic Balance Control (ABC)
• Automatically corrects for most mirror contaminants.
• Automatically restandardizes the instrument.
• You choose time and interval of restandardization,for best convenience. Increase the length of unattended operation.
• Dual alarm capability
• User programmable.
• Can be set for latching or auto-reset mode.
• Form C for greater versatility.
• Serial and analog outputs.
• RS232 communication with terminal, printer, or computer
• Remote programming.
• Data output such as dew point and alarm status. 0-5 VDC, 4-20 mA, 0-10 VDC, or 0-20mA
• User scalable to drive peripheral devices.
• Available simultaneously, one output per measurement parameter. Scalable throughout the entire operating range of psychrometric variables.
• Program via front panel or remote serial port.
• Pressure transducer input for psychrometric variable.
