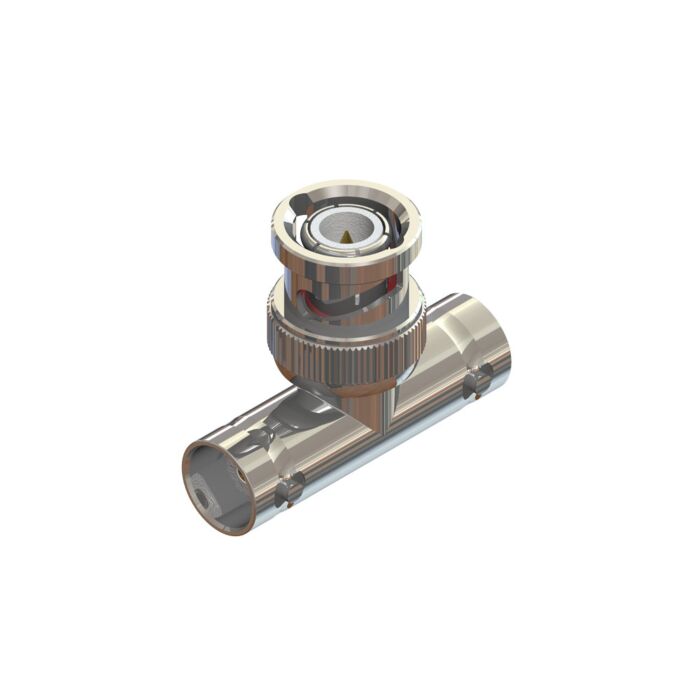

Cal Test Electronics CT3341A
BNC tee female to male to female Adapter
Order #: CT3341A
Mfg #: CT3341A
$73.50
Cal Test Electronics CT3341A
BNC tee female to male to female Adapter
Order #: CT3341A
Mfg #: CT3341A
Product Highlights
The CT3341A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.
- Accuracy
- Low VSWR
- Flat frequency response
- Repeatability
- Cost effectiveness
| Connector Grade | Instrument |
| Body and Coupling Nut | Brass, White Bronze Plated |
| Center Contact | BeCu, Gold Plated |
| Dielectric | PTFE |
| Impedance | 50 Ω |
| Frequency | DC to 3 GHz |
| Insulation Resistance | 5,000 MΩ Min |
| Dielectric Withstanding Voltage | 1,000 V Max @ Sea Level |
| Temperature Range | -45°C to + 85°C |
| RoHS 2(2011/65/EU) | Compliant |
| REACH | Compliant |
