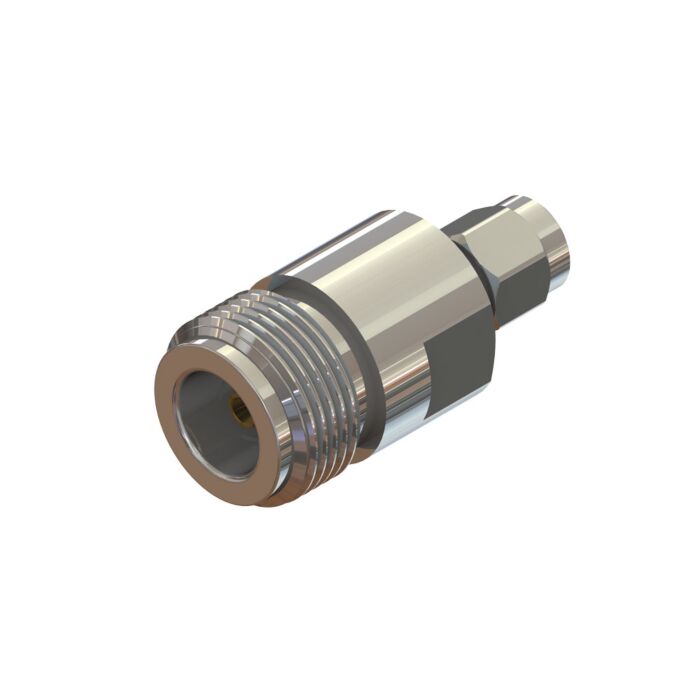

Cal Test Electronics CT3321A
N-Type female to SMA male Adapter
Order #: CT3321A
Mfg #: CT3321A
$73.50
Cal Test Electronics CT3321A
N-Type female to SMA male Adapter
Order #: CT3321A
Mfg #: CT3321A
Product Highlights
The CT3321A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.
- Accuracy
- Low VSWR
- Flat frequency response
- Repeatability
- Cost effectiveness
| Connector Grade | Instrument |
| Body and Coupling Nut | Brass, White Bronze |
| Center Contact | BeCu, Gold Plated |
| Dielectric | PTFE |
| Impedance | 50 Ω |
| Frequency | DC to 12 GHz |
| Insertion Loss | ≤0.04 x √f(GHz) dB |
| Insulation Resistance | 5,000 MΩ Min |
| Dielectric Withstanding Voltage | 1,000 V Max @ Sea Level |
| VSWR | 1.15:1 @ DC - 12 GHz |
| Temperature Range | -55°C to + 165°C |
| RoHS 2(2011/65/EU) | Compliant |
| REACH | Compliant |
