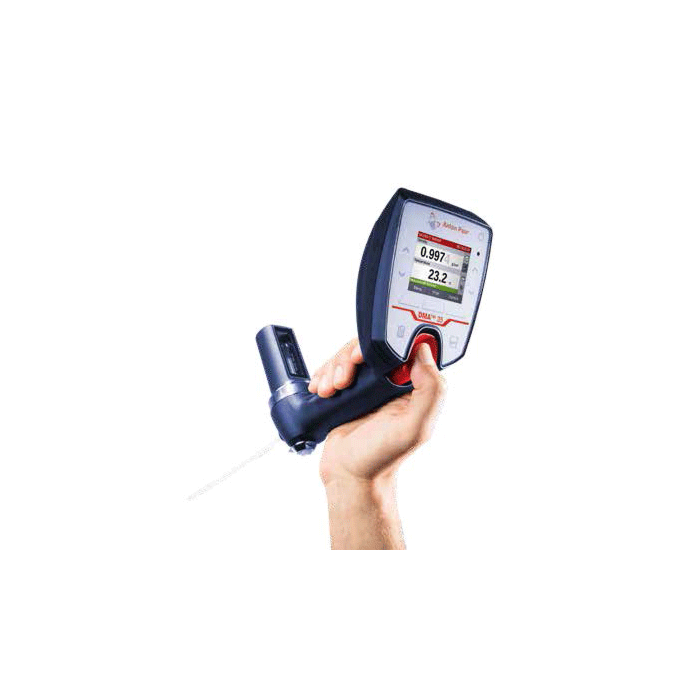

Anton Paar DMA35
Portable Density Meter
Order #: DMA35
Mfg #: 172244
$5,210.80
Anton Paar DMA35
Portable Density Meter
Order #: DMA35
Mfg #: 172244
Product Highlights
- Fill All Kinds of Samples – No Matter what the Viscosity is – in One Second Using the Built-In Pump ora Syringe
- No Expensive Electrical Wearing Parts: You can Easily Do all Cleaning and Maintenance Work Yourself
- Intuitive User Interface Without the Need for any Explanation
- Operated Via Capacitive Keys with a Sensitivity Suitable for Use with or Without Gloves
- For Sample Temperatures of up to 100 °C, Supporting Quick Decisions, e.g. in the Beer Brewing Process (Measurement on Hot Wort)
- Smart Patented Oscillator Connection (AT516421 B1) Enables Replacement In Case of Cell Rupture
- The Most Reliable Portable Density Meter for Fermenting Samples (E.G. Beer and Wine Production) You can Get, Due to Intelligent Oscillator Placement
- The Oscillator is Placed in the Optimal Angle to Avoid the Influence of Potential Gas Bubbles on the Result (Bubbles Automatically Move Outside the Measuring Cell)
| Patents granted | Smart connection of measuring cell: Patent AT516421 (B1), EP3015847 (B1) |
| Other special functions | Viscosity correction for reliable measurements, also on highly viscous samples Gesture control for easy one-handed measurements Identification of results outside your specified limits |
| Measuring range | Density: 0 g/cm³ to 3 g/cm³ Temperature: 0 °C to 40 °C (32 °F to 104 °F)* |
| Sample temperature range | 0 °C to 100 °C (32 °F to 212 °F) |
| Accuracy | Density: 0.001 g/cm³ ** Temperature: 0.2 °C (0.4 °F) |
| Repeatability, s.d.*** | Density: 0.0005 g/cm³ Temperature: 0.1 °C (0.2 °F) |
| Reproducibility, s.d.*** | Density: 0.0007 g/cm³ |
| Resolution | Density: 0.0001 g/cm³ Temperature: 0.1 °C (0.1 °F) |
| Ambient temperature**** | -10 °C to +50 °C (14 °F to 122 °F) |
| Supported measuring units |
|
| Sample volume | 2 mL |
| Dimensions (L x W x H) | 245 mm x 103 mm x 126 mm |
| Data memory | 1024 measured results, 30 measuring methods, 250 sample IDs |
| Power supply | Three 1.5 V LR06 AA alkaline batteries |
| Weight | 660 g |
| Interfaces | Bluetooth®, RFID (both included by default) |
| Protection class | IP54 (first digit: 5 – protection against dust ingress; second digit: 4 – protection against splash water from any direction) |
| Scope of supply | Portable density meter, filling tube, adapter for syringe filling, syringes, transportation suitcase, rubber protection for measuring cell, three batteries, Allen key, instructions |
| Available options |
Elongated filling tube |
| * Measurements up to 100 °C possible ** Viscosity <300 mPa•s, density <2 g/cm³ *** according to ISO 5725 **** Sample must not freeze within the measuring cell |
