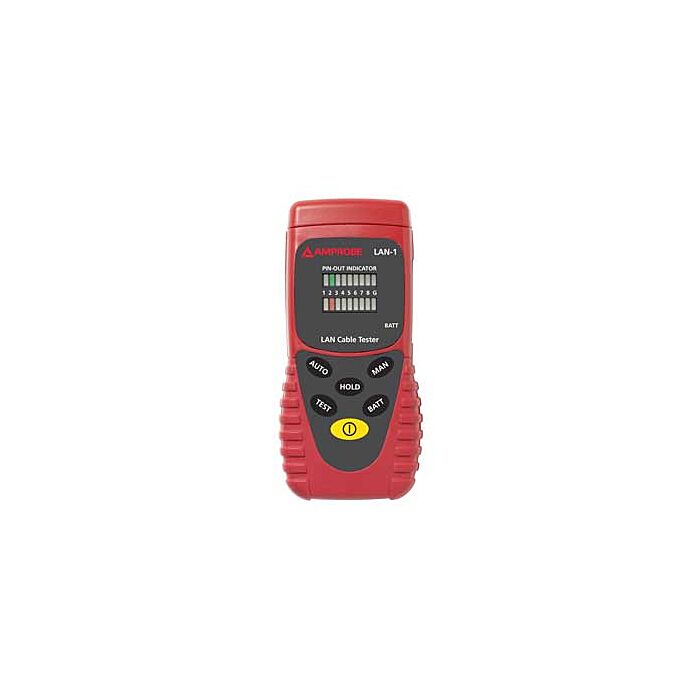

Amprobe LAN-1

Product Highlights

• Test pin configuration for:
• 10/100 base -T cable
• 10 base-2 cable
• RJ45 modular cables
• AT&T 258A cable
• EIA / TIA 568A/568B cables
• Token Ring Cable
• Verify the cable wiring for continuity, opens, shorts or incorrect wiring
• Test installed cable on wall plate or the patch panels by using the Remote Termination module
• Perform Loopback Test or Remote Test
• Buzzer sound warning for error condition in cable
• Two sets of LED lights for Source and Test indication
• Maximum line length: > 300 meters
• Connector types: RJ45, BNC
• Battery Life: Approx 20 hours. (Alkaline battery)
• Size: 130 x 56 x 38 mm (5.1 x 2.2 x 1.5 in.)
• Weight: 1.26 kg (0.6 lb)
• Safety: CE - EMC
• Display: 18 LEDs: 9 Red and 9 Green, 9 LEDs on Remote module
• Battery: Standard 9-volt battery, NEDA 1604A, JIS 006P, IEC 6F22
• Low Battery Indicator: The LED indicator will not turn ON when BATT button is pushed
• Operating environment: 0 to 40°C (32 to 104°F), 10 to 70% RH

Each Unit Includes

• Remote Terminator
• 1 ea RJ45 to female BNC cable
• 1 ea RJ45 to male BNC cable
• 1 ea 1 RJ45 to RJ45 cable
• 1 ea female BNC to female BNC connector
• 9 volt battery
• Users Manual
