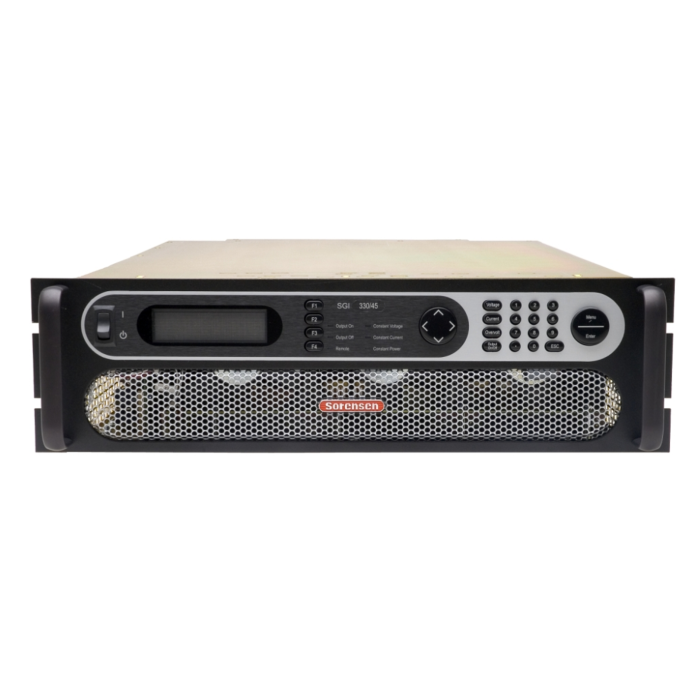

Rent the Ametek SGI800X13C-1CAAPF DC Power Supply - 800 Volt, 10KW 3-phase, 208 input

Product Highlights

The Sorensen SG Series represents the next generation of high power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise and the highest power density in the industry. With a full 15 kW available down to 20VDC output in a 3U package the SG leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units. At the heart of the SG series is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5 kW to 30 kW of power. Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system current.

SGI: Advanced Intelligent Control:

(Sorensen General purpose Intelligent) The SGI combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the SGI ideal for repetitive testing. An impressive vacuum fluorescent graphical display in eight languages, context sensitive “soft” keys and front panel keyboard simplify programming of the SGI.

• Frequency: 47–63Hz
• Modular Design
• Fast Load Transient Response: Protection from undesired voltage excursions
• Low Ripple and Noise
• Hardware Trigger
• Parallelable up to 150 kW
• Sequencing: Free system controller & speed up test
• Low audible noise: Temperature controlled variable speed fans
• Direct Front Panel V/I Control
• 3 1/2 Digit LED Readout

Nominal Voltage 3 phase, 3 wire + ground:

• 208/230 VAC (operating range 187 - 253 VAC)
• 380/400 VAC (operating range 342 - 440 VAC)
• 440/480 VAC (operating range 396 - 528 VAC)
