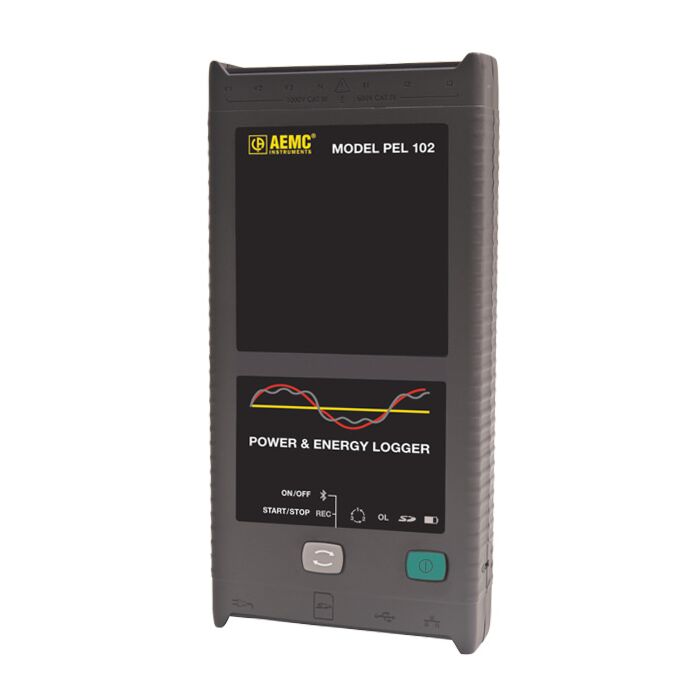

AEMC Instruments PEL102 Power & Energy Logger No LCD

Product Highlights

• Measurement of RMS voltages and currents at 128 times per cycle and stored every second
• Measurement of VA, W and var power values (total and per phase) stored every second
• Measurement of VAh, Wh and varh energy values (total and per phase) per second with source/load indication
• Calculation of the cos f Displacement Power Factor (DPF) and the Power Factor (PF) stored every second
• Calculation of Total Harmonic Distortion (THD)
• Measurement, calculation and display of the harmonics up to the 50th order for 50/60 Hz and 7th order for 400Hz
• Measurement of the DC quantities (RMS calculation)
• Electrical network quantities are stored on a removable SD-Card
• Automatic recognition of the connected current sensors
• DataView software for configuration, data retrieval and real-time viewing of measurements with a PC
• Compact and rugged case
• Versatile communication interface choices built in (USB, Ethernet, Bluetooth)

Each Unit Includes

• Small Classic Tool Bag
• Three MA193-10-BK Sensors
• 5' USB Cable
• Four Black Test Leads and Alligator Clips
• Power cord
• 12 Color-coded ID Markers
• Multifix Mounting System
• Safety Card for the PEL
• Sensor Compliance Sheet
• 2 GB SD Card with USB SD Card Reader
• USB Stick with Dataview
• Quick Start User Guide
• User Manual
