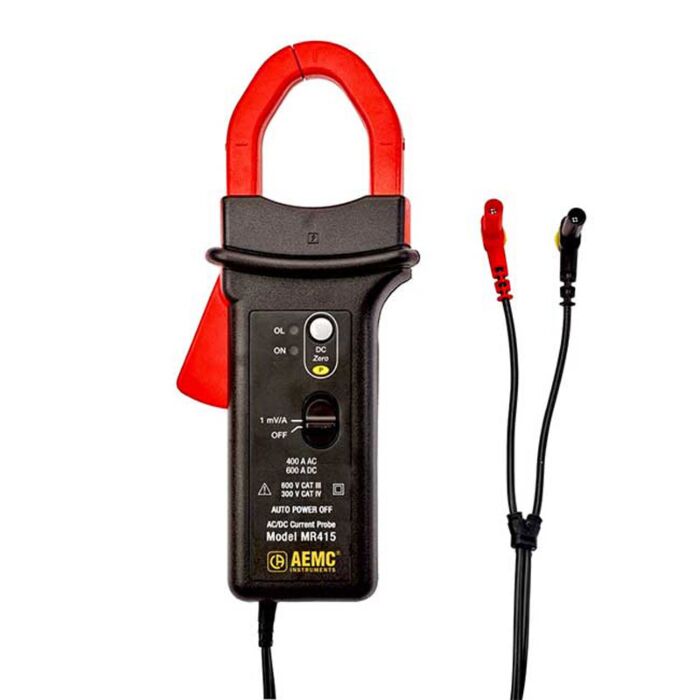

AEMC Instruments MR415 AC/DC Current Probe
AC/DC Current Probe 400AAC 1mV/A and 600ADC,1mV/A

Order #: 1200.80

Mfg #: 1200.80

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $465.50 Regular Price $490.00

AEMC Instruments MR415 AC/DC Current Probe

AC/DC Current Probe 400AAC 1mV/A and 600ADC,1mV/A

Order #: 1200.80

Mfg #: 1200.80

New
Loading...
Print Email Save Item Compare
Special Price $465.50 Regular Price $490.00
Register to view exclusive member pricing
Availability: Ships in 1-2 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The MR415 is a hall effect current probe with 1 range designed for DMM, Data loggers and Power Analyzers. The probe has a 5 ft (1.5m) lead terminated by 4mm safety banana plugs and can measures up to 400AAC and 600ADC. The probe is powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).

400AAC, 1mV/A & 600ADC, 1mV/A, 4mm Banana Plug Lead

  • The jaw shape enables users to clamp on to cables or small busbars
  • Powered by battery or standard external 5V power supply via micro-USB connector
  • Measures up to 1000Aac and 1400Adc (model dependent)
  • Automatic Zero DC reset function
  • Auto Power Off enable/disable function
  • Millivolt output compatible with most equipment and instruments
  • Battery life up to 50 hours
  • Safety rating 600V CATIII
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Specifications
Maximum Conductor Size 1.18" (30mm) or 2 bus bar 1.24 x 0.39" (31.5 x 10mm)
Current Range 0.5 to 400AAC, 600ADC
Output Signal 1mV/A via a 5ft (1.5m) lead with 4 mm safety banana plug
Accuracy 50/60Hz ≤2% @ 400A
Frequency Range DC to 30kHz (-3dB) (depending of current value)
Phase Shift At 50Hz ≤1.5°@ 400A
Load Impedance >1MΩ and ≤100pF
Overload 3000ADC or 1000AAC continuous for < 1kHz
Zero Adjust Automatic on both ranges
Power Supply 9V alkaline Battery (NEDA 1060A, 6LR61) or 5V DC Micro-USB type B
Battery Life 50H typical
Low Battery Indication Green LED blinking
Overload Indication Red LED on when measurement > than selected range
Dimensions  (H x W x D) 8.82 x 3.82 x 1.73" (224 x 97 x 44mm)
Weight (with Battery) 0.98lbs (440g)
Operating Temperature 14° to +131°F (-10 to +55°C)
Storage Temperature -40° to +176°F  (-40 to +80°C)
Relative Humidity Up to 85% @ 35°C
Ingress Protection (Ip) IP 40
EMC EN 61326-1
Safety Compliance IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600V CAT III
Technical Resources
AEMC MR415, MR416, MR525, MR526 Datasheet
