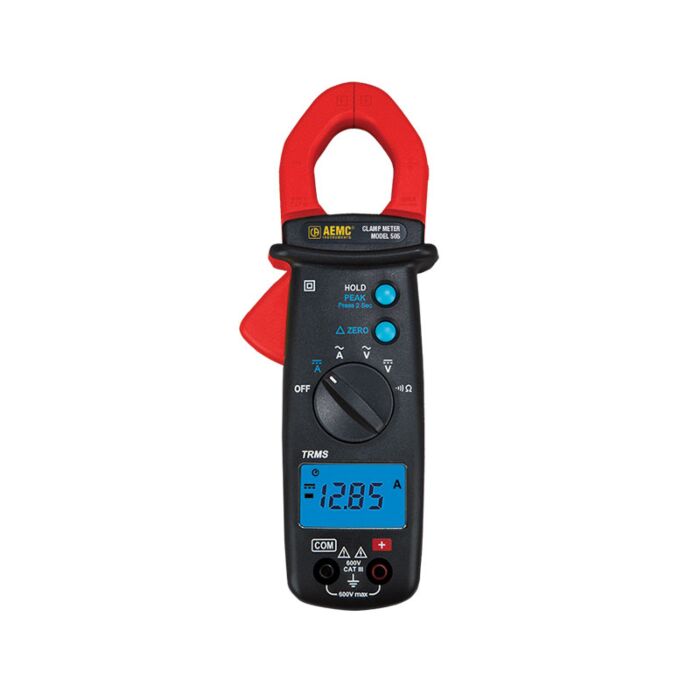

AEMC Instruments 505 Clamp-on Meter
Order #: 505-AEMC
Mfg #: 2139.82
Product Highlights
Clamp-on Meter Model 505
The Clamp-on Meter Model 505 is a general-purpose professional instrument. A strong mechanical case design, quality materials, full ranges and compliance to international safety and quality standards ensure a professional and reliable tool. The Model 505 is auto-ranging, and measures AC and DC voltage, AC and DC current, resistance, and continuity.
The large and complete 4000-count LCD features comprehensive user interface symbols such as a low battery indicator. It is equipped with a Data Hold function, which freezes the measurement. The Model 505 is compact for comfortable one-handed operation, and the hooked jaw design is easy to maneuver in crowded wiring and breaker panels. The jaw opening is 1.1" (28mm).
| ELECTRICAL | |||
| AC Current (Auto-Ranging) | 0.05 to 400A | ||
| Resolution | 0.01A and 0.1A | ||
| AC Voltage(Auto-Ranging) | 0.5 to 600V | ||
| Resolution | 0.1V and 1V | ||
| Input Impedance | 10MΩ | ||
| DC Current (Auto-Ranging) | 0.10 to 400A | ||
| Resolution | 0.01A and 0.1A | ||
| DC Voltage(Auto-Ranging) | 0.2 to 600V | ||
| Resolution | 0.1V and 1V | ||
| Input Impedance | 10MΩ | ||
| Resistance | 0.2 to 600Ω | ||
| Max Test Voltage | 1.5VDC | ||
| Continuity | <35Ω | ||
| Max Test Voltage | 1.5VDC | ||
| Zero Mode / Delta Function | Yes | ||
| Peak Function | Yes | ||
| MECHANICAL | |||
| Dimensions | 7.83 x 2.95 x 1.42" (199 x 75 x 36mm) | ||
| Weight | 8.57 oz. (243g) with batteries | ||
| Jaw Opening | 1.18" (30mm) | ||
| Power Source | 2 x AAA, IEC LR3 (included) | ||
| Battery Life | 40 hours | ||
| ENVIRONMENTAL | |||
| Operating Temperature | +32° to 104°F (0° to +40°C) | ||
| Storage Temperature | +14° to 140°F (-10° to +60°C) | ||
| Operating Humidity | <70% | ||
| Pollution Degeree | 2 | ||
| SAFETY | |||
| Safety Ratings | EN/IEC 61010 to 600V CAT III | ||
