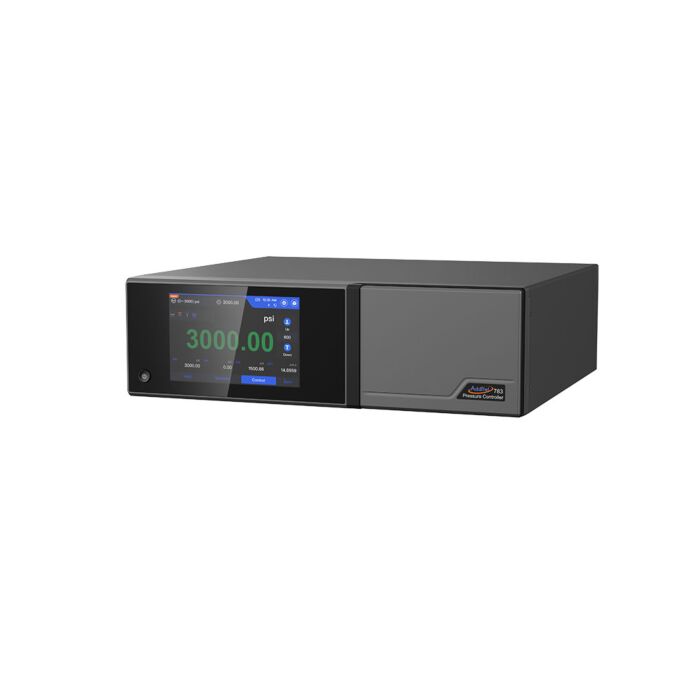

Additel ADT783-D Pressure controller, -14.5 to 36 psi
Pressure controller -14.5 to 36 psi
Order #: ADT783-D
Mfg #: ADT783-D
$12,593.00
Additel ADT783-D Pressure controller, -14.5 to 36 psi
Pressure controller -14.5 to 36 psi
Order #: ADT783-D
Mfg #: ADT783-D
$12,593.00
Availability: Ships in 2-3 weeks
Product Highlights
- Pressure range: -14.35 psi (--0.99 bar) to 3600 psi (250 bar)
- Pressure modules sold separately
- Accuracy: 0.02%FS or 0.01%FS or 0.01%RD
- Control stability: 0.003%FS
- Ultra-High speed pressure generation and control
- Optional barometric pressure module
- Built-in differential pressure pump
- Large 7" color touch screen display
- Multi-automatic test functions: pressure switch, test, leak test, PSV test, etc.
- Modular design for easy maintenance, greatly reducing on-site downtime
- Pressure modules are not included
Each Unit includes
- (1) ADT 783 Pressure controller
- (1) AC power cord (10A 250V)
- (1) ISO17025 accredited calibration certificate
- (2) Green terminal plug for switch detection
- (10) O-ring 3.5*1.5 for ADT151
- (2) Festo plug 6mm for sealing (only for ADT783-D)
- (3) 0.3m silicone tube, 120 kPa max (only for ADT783-D)
- (2) 1.5m polyurethane tube, 700 kPa max (only for ADT783-D)
- (2) ADT100-BARB-FESTO (only for ADT783-D)
| Specification | ADT783-D | ADT783-1K | ADT783-3.6K |
|---|---|---|---|
| Max Pressure Range | 36 psi (2.5 bar) |
1000 psi (70 bar) |
3600 psi (250 bar) |
| Min Pressure Range[1] | -14.35 psi (-0.99 bar) |
-14.35 psi (-0.99 bar) |
-14.35 psi (-0.99 bar) |
| Precision[2] | 0.015%FS (DP2-DP5) 0.025%FS (DP10-DP1K) |
0.01%FS or 0.007%FS or 0.008%RD | 0.01%FS or 0.007%FS or 0.008%RD |
| Accuracy[3] | 0.05%FS (DP2-DP5) 0.02%FS (DP10-DP1K) |
0.02%FS or 0.01%FS or 0.01%RD | 0.02%FS or 0.01%FS or 0.01%RD |
| Control Stability[4] | < 0.003%FS, typically 0.001%FS | < 0.003%FS, typically 0.001%FS | < 0.003% FS, typically 0.001%FS |
