Additel AM1612-2-ADT Freezer Probe, Precision PRT, 0.125" X 2", -200C to 160C
Freezer Probe, Precision PRT, 0.125" X 2",-200 degC-160 degC

Order #: AM1612-2-ADT

Mfg #: AM1612-2-ADT

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,614.20

Additel AM1612-2-ADT Freezer Probe, Precision PRT, 0.125" X 2", -200C to 160C

Freezer Probe, Precision PRT, 0.125" X 2",-200 degC-160 degC

Order #: AM1612-2-ADT

Mfg #: AM1612-2-ADT

$1,614.20
Availability: Ships in 2-3 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

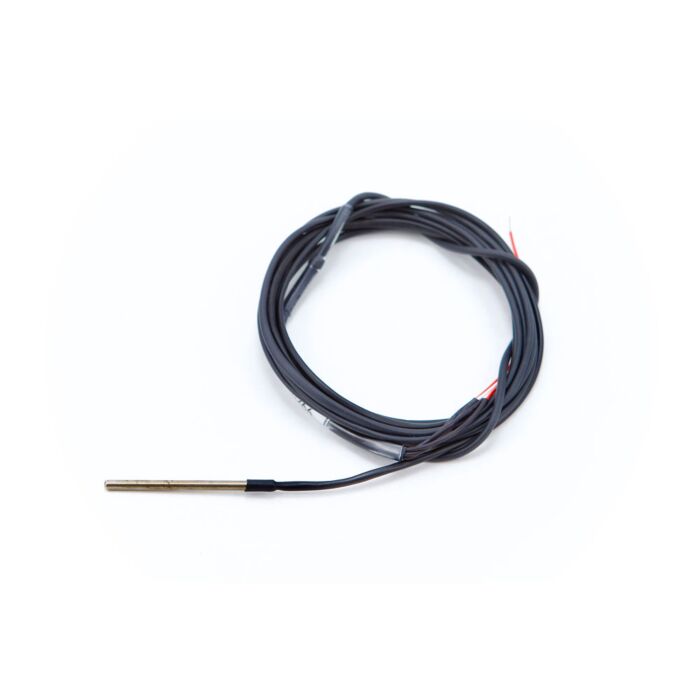

Freezer Probe, Precision PRT, 0.125 inch X 2 inch (3 mm X 50 mm) -200 °C to 160 °C, with lemo smart connection, 2.5 meter cable length, including NIST traceable calibration.

  • Temperature Range: -200°C to 160°C
  • Accuracy: <0.05°C
  • Short-term Stability: <0.02°C
  • Transition Junction and Lead Wires Can Withstand the Full Range of the PRT's
  • Widely Used in Climate/Humidity Chambers and Freezers for Validation/Calibration

The AM1612 full immersion PRT is uniquely designed to provide users an excellent temperature probe that can expose the transition junction and the lead wires to an environment that covers the full PRT temperature range. The seal of the probe prevents the ingress of moisture so that the probe can work in humid conditions or even under full immersion in common heat transfer fluid such as ethanol, silicone oil and mineral oil. It has a wide application in freezers, temperature/humidity chambers and sterilizers. The AM1612 is small in size with a probe length of 1.97 in (50 mm) and diameter of 0.12 in (3 mm). A unique assembly procedure provides the best balance among the hysteresis effect, mechanical shock and thermal shock performance. Each probe comes standard with an NIST-traceable certificate of calibration.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
AM1612-2 AM1612-1
Temperature Range -200°C to 160°C -40°C to 160°C
Nominal Resistance at 0°C 100 Ω
Temperature Coefficient 0.00385 Ω/Ω/°C
Accuracy <0.05°C at 0°C
Long Term Drift at 0.01°C <0.04°C at TPW after 100 hours at 160°C
Short Term Stability <0.02°C
Thermal Shock <0.02°C after 10 thermal cycles from minimum to maximum temperatures
Hysteresis ≤0.01°C
Self-heating 75 mW/°C
Response Time 4 seconds
Measurement Current 1 mA
Sensor Length 1.18 in (30 mm) 0.59 in (15 mm)
Sensor Location 0.12 in (3 mm) from tip
Insulation Resistance >1000 MΩ at room temperature
Sheath Material Stainless Steel
Sheath Dimensions 0.12 in (3 mm) (OD) x 1.97 in (50 mm) (L) 0.12 in (3 mm) (OD) x 0.98 in (25 mm) (L)
External Leads AM1612-2 = 8.20 feet (2.5 meters) AM1612-1 = 2.50 feet (0.8 meters)
Calibration NIST-traceable calibration with data
Lead Composition Enameled copper wire protected by high temperature heat shrink tubing, 4 leads
