Accurate Thermal Systems ATS3080
ThermCal130 Dry Block Calibrator
Order #: ATS3080
Mfg #: ATS3080
$4,893.00
Accurate Thermal Systems ATS3080
ThermCal130 Dry Block Calibrator
Order #: ATS3080
Mfg #: ATS3080
$4,893.00
The ThermCal series was designed and manufactured to be accurate and stable while being light weight for field or laboratory use
Availability: Ships in 1-2 weeks
Product Highlights
- Laboratory performance at an economical price
- Lightweight and portable for use in the field
- Removable probe inserts for flexibility & many probe sizes
- Store & recall up to 8 calibration setpoints
- CE marked for safety
- 120V Model

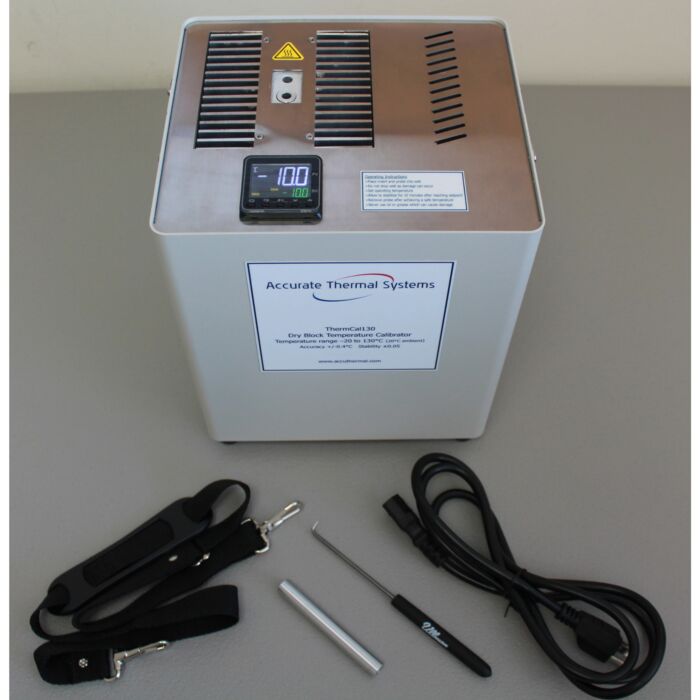

Each Unit Includes
- ThermCal130 calibrator
- Fixed 1/4" reference hole
- Carrying strap
- Insert removal tool
- Does NOT Include Insert - choose from below
- Mains cable
- Traceable calibration certificate
Temperature range |
(ambient of 20°C) -20°C (-4°F) to 130°C (266°F) |
Accuracy |
0.4°C |
Stability |
±0.04C |
Heat up time |
-20 to 130°C 8 minutes |
Cool down time |
20 to -20°C 9 minutes |
Probe well depth & insert diameter |
4” depth by 1/2” diameter |
Power consumption |
150 watts |
Overall dimensions |
10.2” H x 9” W x 8” L |
Weight with insert |
17 pounds |
Warranty |
2 years |
