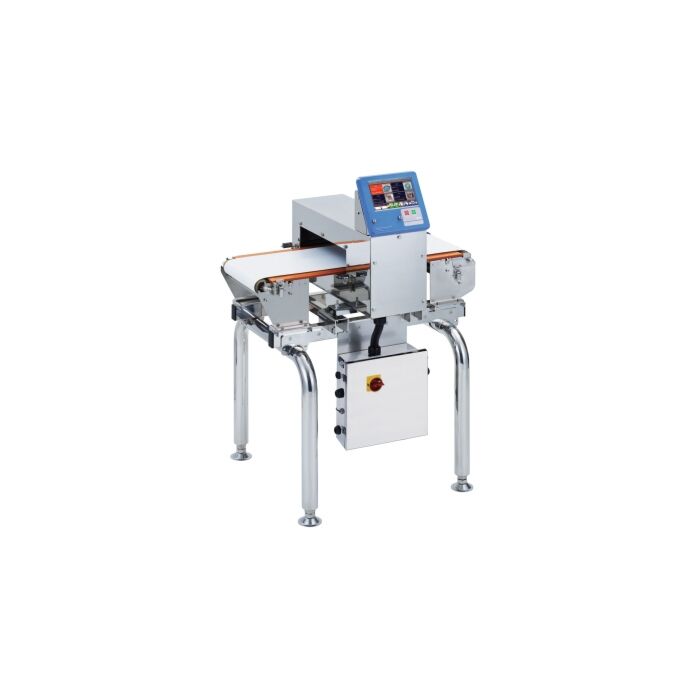

A&D Inspection AD-4971

Product Highlights

The AD-4971 Series Metal Detectors are all IP65 rated (dust and water resistant, IP69K optional), which makes them ideal for the food and beverage industry as well as nutraceutical and pharmaceutical markets. Beyond sensitivity, this series offers stability, a user-friendly interface, high repeatability, and automated monitoring.

• 170mm Aperture
• Pass Height: 150mm
• Package Max Weight: 6kg
• Products can be divided into 10 different groups, with up to 100 products able to be recorded within each group
• You can conduct high sensitivity detection with simple and easy operation
• The optimal sensitivity setting can be set through the auto sensitivity settings
• The phase tracking function enables minimization of product phase and allows constant high sensitivity inspection
• The display utilizes a high visibility touch panel color LCD with user friendly Graphic User Interface (audio guidance support function included)
• Product images can be quickly uploaded to the metal detector from USB memory, making product identification and uploading fast and simple
• Protected from dust and water to IP65 standards.Hygienic design with the entire system washable
• Suitable for use in HACCP program
• Automatic sensitivity setting function
• Easy operation with 7 inch color touch panel
• Variable belt speed of 10-60m/min
• Standard Ethernet I/O allowing easy networking via LAN
• Inspection history function with the ability to record 100 inspection results in the internal memory. Capacity can be increased by using USB memory
• Cleaning and maintenance is simple with a detachable conveyor belt
