Product Highlights

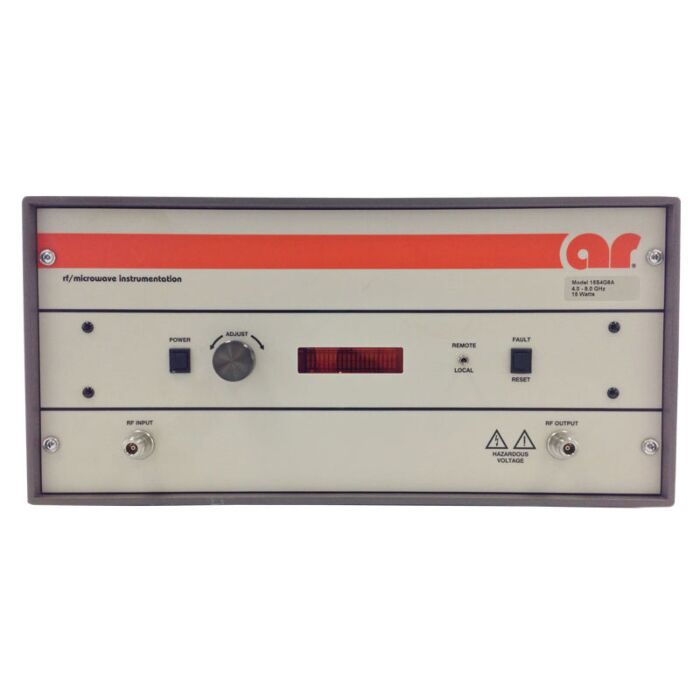

The Amplifier Research 15S4G8A is a self-contained, air-cooled, broadband amplifier designed for applications that require instantaneous bandwidth and high gain. It is housed in a stylish cabinet and designed for benchtop use, but can be removed for equipment rack mounting.
- Features:
- Provides a minimum of 15 watts of RF power when used with a sweep generator
- Front panel gain control provides convenience of setting desired output level
- RF input leveling circuit:
- Protects the amplifier from RF input overdrive
- Controls RF input level to the RF amplifier first stage when RF input level is increased above 0 dBm
- RF amplifier stages are protected from over-temperature, due to cooling blockage or fan failure, by removing the DC voltage to them
- Digital Display on front panel indicates operate status and fault conditions when over-temperature or power supply fault occurs
- Digital control for both local and remote control of the amplifier
- Control System is a 16-bit RISC microcontroller board:
- Handles primary functions of the amplifier
- Interprets commands sent to it from an 8-bit remote interface board:
- 8-bit microprocessor controlled board provides IEEE-488 (GPIB) and RS-232 control of all amplifier functions
- Expandable power technology provides upgradability
- Specifications:
- Rated output power: 15 watts minimum
- Power output @ 3dB compression:
- Nominal: 19 watts
- Minimum: 16 watts
- Power output @ 1dB compression:
- Nominal: 16 watts
- Minimum: 14 watts
- Flatness:
- typical: ±1.0 dB
- maximum: ±2.0 dB
- Frequency response: 4.0 - 8.0 GHz instantaneously
- Input for rate output: 1.0 milliwatt maximum, 0 dBm
- Gain (at maximum setting): 42 dB minimum
- Gain adjustment (continuous range): 10 dB minimum
- Input impedance: 50 ohms, VSWR 2.5:1 maximum
- Output impedance: 50 ohms nominal
- Mismatch tolerance:
- 100% of rated power without foldback
- Will operate without damage or oscillation with any magnitude and phase of source and load impedance
- Modulation capability: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal
- Harmonic distortion: Minus 20 dBc maximum at 15 watts
- Third order intercept point: 51 dBm typical
- Noise figure: 10 dB typical
- Primary power (selected automatically):
- 90-132, 180-264 VAC
- 50/60 Hz, single phase
- Connectors:
- RF:
- Input: Type N female on front panel
- Output: Type N female on front panel
- Remote Interfaces:
- IEEE-488: 24 pin
- RS-232: 9 pin subminiature D (female)
- RS-232 (Fiber-optic): Type ST
- USB 2.0: Type B
- Ethernet: RJ-45
- Safety Interlock: 15 pin subminiature D
- Cooling: Forced air (self contained fans)
