Amplifier Research 100S1G6 for Rent, Microwave Amplifier, 0.7 to 6 GHz, 100W
Microwave Amplifier, 0.7 - 6 GHz, 100W
Order #: 100S1G6-RENT3
Mfg #: 100S1G6
Call for price
Call for price
Amplifier Research 100S1G6 for Rent, Microwave Amplifier, 0.7 to 6 GHz, 100W
Microwave Amplifier, 0.7 - 6 GHz, 100W
Order #: 100S1G6-RENT3
Mfg #: 100S1G6
Call for price
Request a Rental Quote
Have a Question? Speak to a Transcat Rental Expert: 800.264.4059
Call for price
Availability: Call for Availability
![Loading...](https://www.transcat.ca/static/version1724161005/frontend/Transcat/canada-en/en_US/images/loader-1.gif)
Product Highlights

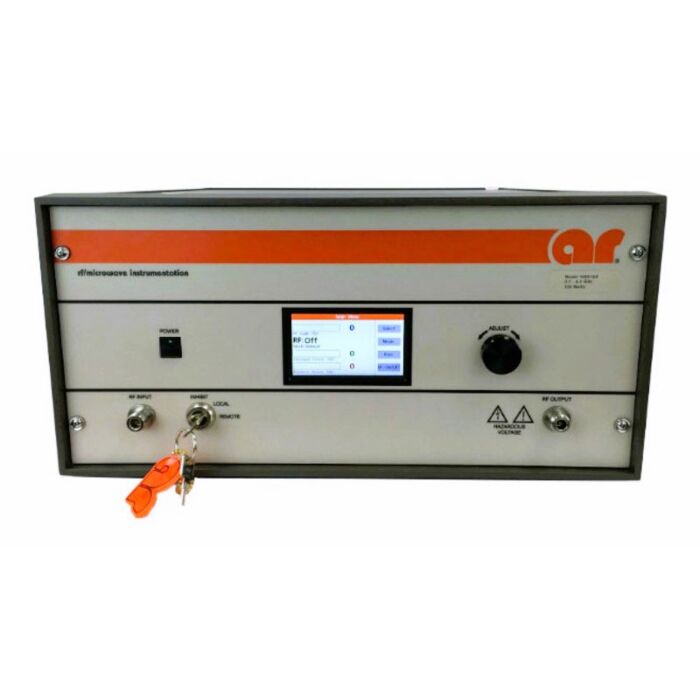

The Amplifier Research 100S1G6 is a self-contained, air-cooled, broadband amplifier designed for applications that require instantaneous bandwidth, high gain, and linearity. It is housed in a stylish cabinet and designed for benchtop use, but can be removed for equipment rack mounting.
- Features:
- Provides a minimum of 100 watts of RF power when used with a sweep generator
- Front panel gain control provides convenience of setting desired output level
- RF input leveling circuit:
- Protects the amplifier from RF input overdrive
- Controls RF input level to the RF amplifier first stage when RF input level is increased above 0 dBm
- RF amplifier stages are protected from over-temperature, due to cooling blockage or fan failure, by removing the DC voltage to them
- Digital Display on front panel indicates operate status and fault conditions when over-temperature or power supply fault occurs
- Control functions and status indications are available remotely in GPIB/IEEE format, RS-232 hardwire and fiber optic, USB and Ethernet
- Bus interface connector on back panel
- Local/Remote switch on front panel assures positive control of local or remote operation
- Low level of spurious signals and linearity make it ideal for these uses:
- As a driver amplifier in testing wireless and communication components and subsystems
- As a test instrument covering mutiple frequency bands
- For communication technologies including CDMA, W-CDMA, TDMA, GSM, etc.
- Specifications:
- Rated output power: 100 watts minimum
- Input for rated output: 1.0 milliwatt maximum
- Power output @ 3dB compression:
- Nominal: 120 watts
- Minimum: 100 watts
- Power output @ 1dB compression:
- Nominal: 100 watts
- Minimum: 80 watts
- Small Signal Gain Flatness:
- typical: ±1.5 dB
- maximum: ±2.5 dB
- Frequency response: 0.7 - 6 GHz instantaneously
- Gain (at maximum setting): 52 dB minimum
- Gain adjustment (continuous range): 10 dB minimum (4096 steps remote)
- Input impedance: 50 ohms, VSWR 2.0:1 maximum
- Output impedance: 50 ohms nominal
- Mismatch tolerance:
- 100% of rated power without foldback
- Will operate without damage or oscillation with any magnitude and phase of source and load impedance
- Modulation capability: Will faithfully reproduce AM, FM, or pulse modulation appearing on the input signal
- Third order intercept point: 58 dBm typical
- Noise figure: 10 dB typical
- Harmonic distortion: Minus 20 dBc maximum at 80 watts
- Spurious: Minus 73 dBc typical
- Phase linearity: ±1.0 deg / 100 MHz typical
- Primary power (selected automatically):
- 90-132, 180-264 VAC
- 50/60 Hz, single phase
- 1100 watts maximum
- Connectors:
- RF: Type N female
- Remote Interfaces:
- IEEE-488: 24 pin
- RS-232: 9 pin Subminiature D
- RS-232 (fiber-optic): Type ST
- USB 2.0: Type B
- Ethernet: RJ-45
- Safety Interlock: 15 pin Subminiature D
- Cooling: Forced air (self contained fans)
