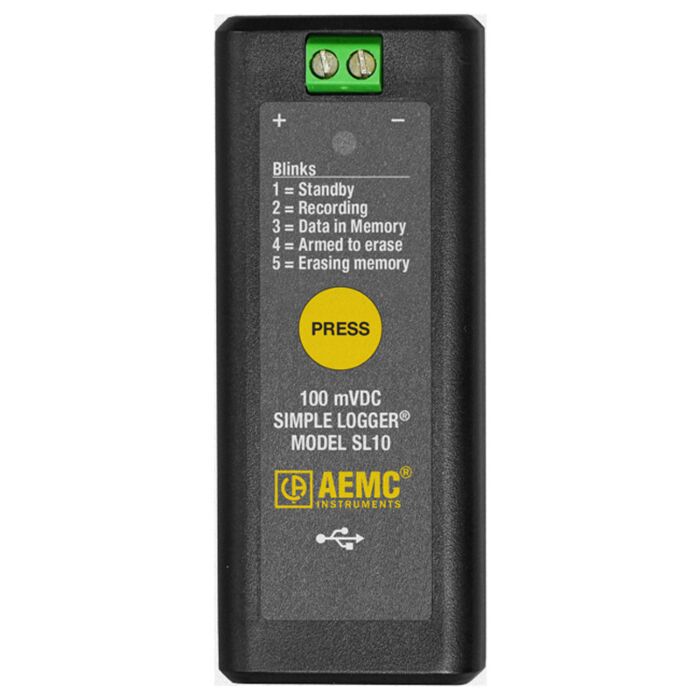

AEMC Instruments SL10 Simple Logger (voltage, 100mVDC)
Order #: 2156.10
Mfg #: 2156.10
Product Highlights
The Simple Logger® Model SL10 is a small one channel recording device powered by two AA alkaline batteries. It can also be powered by 5V using the USB interface cable supplied. The input is 0 - 100mVDC facilitated by two screw terminals. Sample rate is 16/sec with a storage rate of once per second of the average of all the samples. Application software is included with the unit by plugging it into your computer using the USB cable and downloading it from our web site. Scaling units of measure and recording length can be set through the software. Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed.
The main advantage of the logger is its ability to begin recording with only the need to configure the length of time for the recording. A simple one button operation is all you need. The front panel LED alerts the operator of the logger's status.
| Channels | One |
| Input | Screw connector |
| Range | -100mV to +100mVDC |
| Accuracy (50/60Hz) | ±(0.5% R +5mV) with filter set to 10 |
| Resolution | 0.1mV |
| Maximum Input Voltage | 60VDC |
| Input Impedance | 800kΩ |
| Sample Rate | 16 samples/second |
| Storage Rate | 1 second |
| Storage Modes | Start/Stop |
| Recording Length | ≥43 days |
| Memory | 4 million measurements (8Mb). Recorded data is stored in non-volitile memory and will be retained even if battery is low or removed. |
| Communication | USB 2.0 (Simple Logger software free to download from web site) |
| Power Source | 2x1.5V AA (LR6) alkaline batteries or USB 5VDC |
| Battery Life | 43 days with new batteries when recording |
| Low Battery | Battery voltage display in software (Batteries need replacement when the LED is dim or does not blink) |
| Dimensions | 3.6 x 1.44 x 1.32" (91.44 x 36.58 x 34.8mm) |
| Weight (with battery) | 3.5oz (99g) |
| Case | Polycarbonate |
| Operating Temperature | 14° to 122°F (-10° to 50°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | Up to 85% @ 95°F (35°C) |
| Ingress Protection (IP) | IP40 |
| EMC | EN 61326-1 |
| Safety Compliance | IEC 61010-1 |
-
AEMC Instruments SL12 Simple Logger (voltage, 10 VDC)Simple Logger : voltage, 10 VDCSpecial Price $198.17 Regular Price $208.60 -

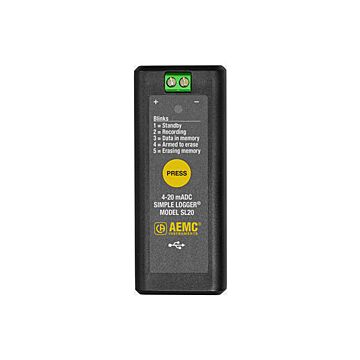

AEMC Instruments SL20 Simple Logger (current,4-20 mADC)Simple Logger : current, 4 to 20 mADCSpecial Price $198.17 Regular Price $208.60
-
