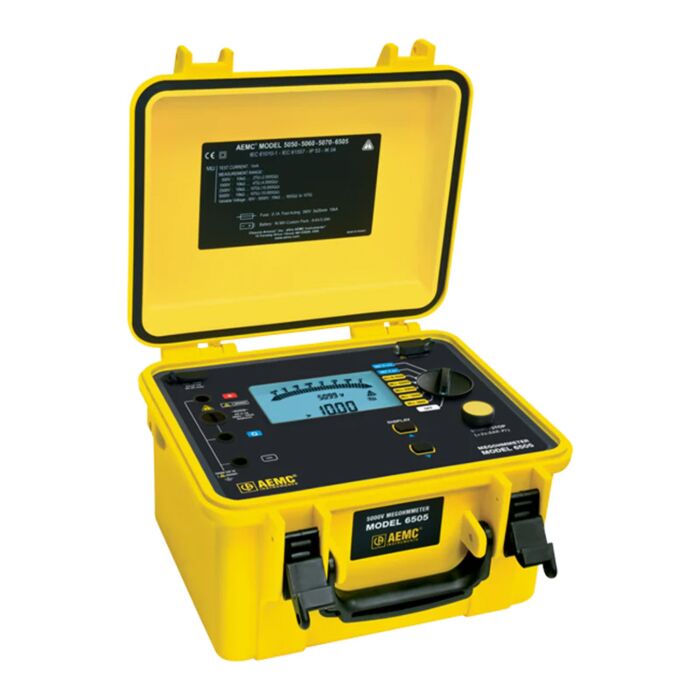

AEMC Instruments 6505 Megohmmeter, 5000V
Digital Megohmmeter, Auto DAR/PI, 500V/1000V/2500V/5000V

Order #: 2130.18

Mfg #: 2130.18

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $3,790.50 Regular Price $3,990.00

AEMC Instruments 6505 Megohmmeter, 5000V

Digital Megohmmeter, Auto DAR/PI, 500V/1000V/2500V/5000V

Order #: 2130.18

Mfg #: 2130.18

Special Price $3,790.50 Regular Price $3,990.00
Availability: Ships in 3-5 days

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

The Megohmmeter Model 6505 is a True Megohmmeter® portable instrument housed in a rugged field case that operates on either battery or line power. It performs voltage, insulation, and capacitance measurements. This instrument contributes to the safety of electrical installations and equipment.

Features include automatic calculation and presentation of the Dielectric Absorption Ratio (DAR) and Polarization Index (PI). The Model 6505 displays the test voltage, insulation resistance and the leakage current during the test. Capacitance of the sample and discharge voltage present at the test leads is displayed at the conclusion of the test.

The Model 6505 is designed with a high level of built-in safety features. This meter incorporates test inhibit capabilities which will not allow test voltages to be generated if a live sample is detected. The test terminals are recessed to ensure operating safety.

  • Test voltage combination of 500V, 1000V, 2500V and 5000V
  • Insulation measurements from 30kΩ to 10TΩ
  • Adjustable and programmable test voltage (40 to 5100V)
  • Automatic calculation of DAR and PI values
  • Direct measurement and display of Capacitance and Leakage Current
  • Display of resistance, test voltage and run time
  • Programmable test run times and PI ratio times
  • Automatic test inhibition if live sample (>25)
  • Automatic discharge and display of discharge voltage
  • Large dual-display with time, voltage and measurements shown
  • Rugged dual wall weatherproof field case
  • Designed and built to IEC safety standards
  • EN 61010-1, 1000V CAT III

Each Unit Includes

  • Classic Tool Bag
  • 3 color coded 6 ft leads
  • 3 color coded alligator clips
  • Jumper lead
  • Fuse
  • Rechargeable battery pack
  • 115V power cord
  • User Manual
