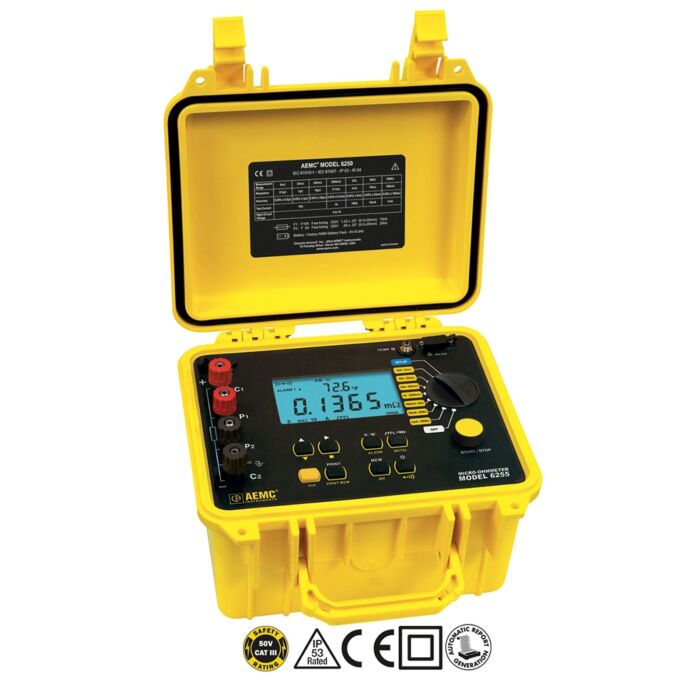

AEMC Instruments 6255 for Rent, 10A Micro-Ohmmeter
10A Micro-Ohmmeter
Order #: 2129.84-RENT1
Mfg #: 2129.84-RENT1
Call for price
Call for price
AEMC Instruments 6255 for Rent, 10A Micro-Ohmmeter
10A Micro-Ohmmeter
Order #: 2129.84-RENT1
Mfg #: 2129.84-RENT1
Call for price
Call for price
Product Highlights
The 10A Micro-Ohmmeter Model 6255 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6255 is the most accurate Micro-Ohmmeter available, with results within 0.05%.
The Model 6255 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer from a PC.
- Measure from 1µΩ (0.1µΩ resolution) to 2500.0Ω
- Test current selection of 1mA, 10mA, 100mA, 1A and 10A
- Tests up to 60 minutes at 10Amps
- RTD temperature probe (optional)
- Automatic and manual temperature correction
- Two programmable alarm set points
- Stores up to 1500 test results
- Selectable inductive or resistive test modes
- Automatic multiple test mode (multiple tests without pressing the test button)
- Large multi-line electroluminescent display
- Internal rechargeable batteries conduct up to 5000 – 10A tests
- Rugged, double insulated waterproof case
| Measurement Range | ||||
| Range | Resolution | Accuracy @ 23°C±5°C | Measurement Current | Voltage Drop |
| 5mOhm | 0.1µOhm | ±(0.15% +1.0µOhm) | 10A | 50mV |
| 25mOhm | 1µOhm | ±(0.05% +3µOhm) | 10A | 250mV |
| 250mOhm | 10µOhm | ±(0.05% +30µOhm) | 10A | 2500mV |
| 2500mOhm | 0.1mOhm | ±(0.05% +0.3mOhm) | 1A | 2500mV |
| 25Ohm | 1mOhm | ±(0.05% +3mOhm) | 100mA | 2500mV |
| 250Ohm | 10mOhm | ±(0.05% +30mOhm) | 10mA | 2500mV |
| 2500Ohm | 100mOhm | ±(0.05% +300mOhm) | 1mA | 2500mV |
| Temperature Measurement | 3 wire 100Ohm platinum RTD | |||
| Accuracy | ±0.5°C | |||
| Resolution | 0.1°C | |||
| Selectable Metal Type | Yes - Copper, Aluminum or Custom | |||
| Alarm Mode | Yes - 2 Alarms with High-Low trigger | |||
| Storage Memory | 1500 tests, supplied with DataView® software for download and reporting | |||
| Battery | Rechargeable NIMH battery pack 6V, 8.5Ah | |||
| Battery Life: 10A | 5000 tests typical | |||
| Battery Charger | 120/240VAC ± 20% (45 to 400Hz) | |||
| Auto Power OFF | When battery voltage <5.0V | |||
| Overload Protection | 250Vrms | |||
| Dimensions (L x W x H) | 10.70 x 9.76 x 7.18 | |||
