AEMC Instruments 6471 2135.48 Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Order #: 2135.48
Mfg #: 2135.48
Special Price
$3,602.97
Regular Price
$3,792.60
AEMC Instruments 6471 2135.48 Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Ground Resistance Tester Digital, 3 & 4-Point, Clamp-on
Order #: 2135.48
Mfg #: 2135.48
Special Price
$3,602.97
Regular Price
$3,792.60
Availability: Ships in 1-2 weeks
Product Highlights
- Test ground resistance using the 2 clamp method (no auxiliary rods needed)
- 2- and 4-Pole Bond Resistance/Continuity measurement (DC Resistance) with automatic polarity reversal
- 3-Pole Fall-of-Potential measurement with manual or automatic frequency selection
- 4-Pole Soil Resistivity measurement with automatic calculation of Ρ and user selection of the Wenner or Schlumberger test method
- 3-Pole Earth Coupling measurement
- Manual and Automatic frequency scan from 41 to 513Hz for optimum test accuracy in electrically noisy environments
- Selectable test voltage of 16 or 32V up to 250mA of test current
- Auto-off power management
- Automatic recognition of all electrode connections and their resistance value
- Stores up to 512 complete test results in internal memory
- Optically isolated USB communication
- Remote set up and operation of all measurements using DataView® software
- Rechargeable NiMH batteries from wall charger or vehicle power
- Rugged dustproof and rainproof field case - IP54 rated in closed position
- Grounding standards IEC 61557 parts 4 and 5 compliant
- Includes DataView® software for data storage, real-time display, analysis, report generation and system configuration
-

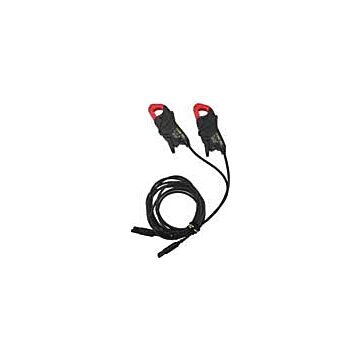

AEMC Instruments MN82 AC Current ProbeAC Current Probe for the 6471 and 6472Order #: 2135.71
Mfg #: 2135.71
Availability: Ships in 1-2 weeksSpecial Price $465.50 Regular Price $490.00 -

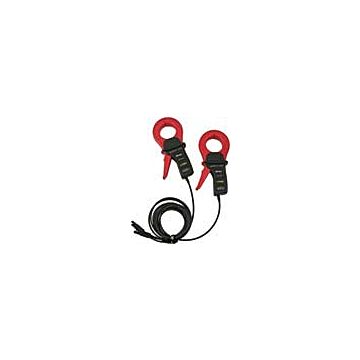

AEMC Instruments SR182 AC Current Probe (for Models 6471 & 6472)AC Current Probe for the 6471 and 6472, 40ARMS
Order #: 2135.72
Mfg #: 2135.72
Availability: Ships in 1-2 weeksSpecial Price $631.75 Regular Price $665.00 -
AEMC Instruments 2135.85 Caddy - Set of 2, Reel CaddyCaddy - Set of 2, Reel Caddy for use w/Ground Kit Spools
Order #: 2135.85
Mfg #: 2135.85
Availability: Ships in 1-2 weeksSpecial Price $164.92 Regular Price $173.60 -
AEMC Instruments 2135.35 Test Kit for 3-Point TestingTest Kit for 3-Point Testing
Order #: 2135.35
Mfg #: 2135.35
Availability: Ships in 1-2 weeksSpecial Price $791.35 Regular Price $833.00 -
AEMC Instruments 2135.36 Test Kit for 4-Point TestingTest Kit for 4-Point Testing
Order #: 2135.36
Mfg #: 2135.36
Availability: Ships in 1-2 weeksSpecial Price $1,010.80 Regular Price $1,064.00 -
AEMC Instruments 2135.37 Test Kit for 4-Point TestingGround Resistance Test Kit for 4-Point Testing - 500ft
Order #: 2135.37
Mfg #: 2135.37
Availability: Ships in 1-2 weeksSpecial Price $1,183.70 Regular Price $1,246.00
| 2 Clamp Measurement | |
|---|---|
| Range | O.01 to 500Ω |
| Resolution | 0.01 to 1Ω |
| Measurement Frequency | Auto: 1367Hz Manual: 128Hz-1367Hz-1611Hz-1758Hz |
| 3-Point Measurement | |
| Range (Auto-Ranging) | 0.09Ω to 99.9kΩ |
| Resolution | 0.01Ω to 100Ω |
| Test Voltage | Nominal 16 or 32VRMS user selectable |
| Resistance Measurement Frequency | 41 to 513Hz automatic or user selectable |
| Test Current | Up to 250mA |
| Accuracy | ±2% of Reading + 1ct @ 128Hz |
| Soil Resistivity 4-Point Measurement | |
| Test Method | Wenner or Schlumberger selectable with automatic calculation in Ω-meters, Ω-cm or Ω-feet |
| Range (Auto-Ranging) | 0.01 to 99.99kΩ Max: 999kΩm |
| Resolution | 0.01 to 100Ω |
| Test Voltage | 16 or 32V user selectable |
| Frequency | From 41 to 128Hz selectable |
| External Voltage Measurement | |
| Range (Auto-Ranging) | 0.1 to 65.0Vac/dc – DC to 440Hz |
| Accuracy | ±2% of Reading + 1cts |
| Resistance Measurement (Bond Testing) | |
| Measurement Type | 2-Pole (with lead resistance compensation) or 4-Pole (Kelvin sensing) user selectable |
| Range (Auto-Ranging) | 2-Pole 0.01O to 99.9kΩ; 4-Pole 0.001O to 99.99kΩ |
| Accuracy | ±2% of Reading + 2cts |
| Test Voltage | 16Vdc (+, - or auto polarity) |
| Test Current | Up to 250mA max |
| Data Storage | |
| Memory Capacity | 512 test results |
| Communication | Optically Isolated USB |
| Power Source | 9.6V rechargeable battery pack |
| Recharging Source | 110/220 50/60Hz external charger with 18Vdc, 1.9A output or 12V vehicle power |
