AEMC Instruments 6255 (2129.84) 10 A Micro-Ohmmeter
Micro-Ohmmeter
Order #: 2129.84
Mfg #: 2129.84
Special Price
$7,381.50
Regular Price
$7,770.00
AEMC Instruments 6255 (2129.84) 10 A Micro-Ohmmeter
Micro-Ohmmeter
Order #: 2129.84
Mfg #: 2129.84
Special Price
$7,381.50
Regular Price
$7,770.00
Availability:
In stock
This item is available as RENTAL at
Call for price
Shop now
Product Highlights
The 10A Micro-Ohmmeter Model 6255 is a rugged, low resistance tester designed for both plant maintenance and field use. Utilizing a four-lead Kelvin method, the Model 6255 is the most accurate Micro-Ohmmeter available, with results within 0.05%.
The Model 6255 is uniquely designed to conduct tests on both resistive and inductive material, with operator selection directly from the front panel. Three test modes are available; resistive (instantaneous test), inductive (continuous test), and auto (repetitive test). Up to 1500 measurements can be stored and printed directly to a printer from a PC.
The DataView® Software included allows you to configure the instrument, store data and print reports.
- Measure from 1µΩ (0.1µΩ resolution) to 2500.0Ω
- Test current selection of 1mA, 10mA, 100mA, 1A and 10A
- Tests up to 60 minutes at 10Amps
- RTD temperature probe (optional)
- Automatic and manual temperature correction
- Two programmable alarm set points
- Stores up to 1500 test results
- Selectable inductive or resistive test modes
- Automatic multiple test mode (multiple tests without pressing the test button)
- Large multi-line electroluminescent display
- Internal rechargeable batteries conduct up to 5000 – 10A tests
- Rugged, double insulated waterproof case
Each Unit Includes
- Extra large tool bag
- Set of (2) 10 ft Kelvin Clips (10A - Hippo)
- Set of (2) 10 ft Kelvin Probes (1A - Spring Loaded)
- RS-232 DB9 F/F 6 ft null modem cable
- RS-232 to USB adapter
- US 115V power cord
- NiMH rechargeable 6V battery pack (installed in meter)
- Quick Start guide
- USB thumb drive with DataView® software
- User Manual
-
AEMC Instruments 1017.84 Kelvin Clips, 10', (10A-Hippo)Kelvin Clips,10' (10A-Hippo)Order #: 1017.84
Mfg #: 1017.84
Availability: Ships in 1-2 weeksSpecial Price $293.93 Regular Price $309.40 -
AEMC Instruments 2118.70 Kelvin Clips, 20' (10A-Hippo)Kelvin Clips, 20' (10A-Hippo)
Order #: 2118.70
Mfg #: 2118.70
Availability: Ships in 1-2 weeksSpecial Price $365.75 Regular Price $385.00 -
AEMC Instruments 2118.73 10' Kelvin Probes (1A, Spring Loaded)Kelvin Probes, 10' (1A, Spring Loaded)
Order #: 2118.73
Mfg #: 2118.73
Availability:In stockSpecial Price $181.54 Regular Price $191.10 -
AEMC Instruments 2118.74 Kelvin Probes, 20' (1A, Spring Loaded)Kelvin Probes, 20' (1A, Spring Loaded)
Order #: 2118.74
Mfg #: 2118.74
Availability: Ships in 1-2 weeksSpecial Price $226.10 Regular Price $238.00 -
AEMC Instruments 2118.77 Kelvin Probes 10' (10A) Spring LoadedKelvin Probes, 10ft, 10A, Sprin Loaded
Order #: 2118.77
Mfg #: 2118.77
Availability: Call for AvailabilitySpecial Price $891.10 Regular Price $938.00 -
AEMC Instruments 2118.78 Kelvin Probes20'Kelvin Probes(10A) Spring Loaded
Order #: 2118.78
Mfg #: 2118.78
Availability: Ships in 1-2 weeksSpecial Price $997.50 Regular Price $1,050.00 -
AEMC Instruments 2118.79 Replacement Kelvin Clips, 10', 1- 10AReplacement Kelvin Clips, 10', 1-10A
Order #: 2118.79
Mfg #: 2118.79
Availability: Ships in 1-2 weeksSpecial Price $159.60 Regular Price $168.00 -
AEMC Instruments 2118.80 Kelvin Clips, 20' (1-10A)Kelvin Clips,20ft.(1-10A)
Order #: 2118.80
Mfg #: 2118.80
Availability: Ships in 1-2 weeksSpecial Price $226.10 Regular Price $238.00 -

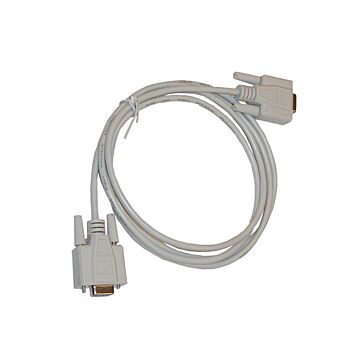

AEMC Instruments 2119.45 Cable-PC RS-232,DB9, F/F, 6', Null Modem CableCable-PC RS-232,DB9 F/F 6'Null Modem Cable(for 1060/5060/5070)
Order #: 2119.45
Mfg #: 2119.45
Availability: Ships in 1-2 weeksSpecial Price $26.60 Regular Price $28.00 -
AEMC Instruments 2129.95 RTD Temperature Probe for Model 6250RTD Temperature Probe for Model 6250
Order #: 2129.95
Mfg #: 2129.95
Availability: Ships in 1-2 weeksSpecial Price $279.30 Regular Price $294.00 -

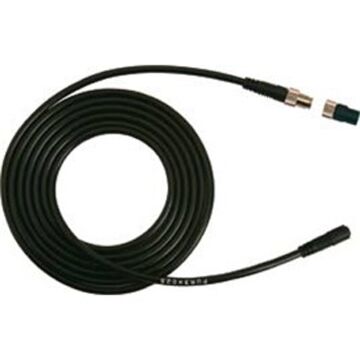

AEMC Instruments 2129.96 RTD Temperature Probe with 7' Extension CableRTD Temperature Probe w/7' Extension Cable
Order #: 2129.96
Mfg #: 2129.96
Availability: Ships in 1-2 weeksSpecial Price $465.50 Regular Price $490.00 -
AEMC Instruments 2129.98 Set of 3 Fuses, 6.3x32mm, 16A, 250V (6250)Set of 3 Fuses, 6.3x32mm,16A, 250V, Fast Blow(for Model 6250)
Order #: 2129.98
Mfg #: 2129.98
Availability: Ships in 1-2 weeks$96.60 -
AEMC Instruments 2133.73 Extra Large Classic Tool BagExtra Large Classic Tool Bag (18x9x12")
Order #: 2133.73
Mfg #: 2133.73
Availability: Ships in 1-2 weeksSpecial Price $70.49 Regular Price $74.20 -
AEMC Instruments 2135.43 Inverter-12V DC to 120V AC 200 WattInverter-12V DC to 120V AC 200 Watt for vehicle use
Order #: 2135.43
Mfg #: 2135.43
Availability: Ships in 1-2 weeksSpecial Price $119.70 Regular Price $126.00 -
AEMC Instruments 5000.14 Power Cord 115V US PlugPower Cord 115V US Plug
Order #: 5000.14
Mfg #: 5000.14
Availability: Ships in 1-2 weeks$14.00 -

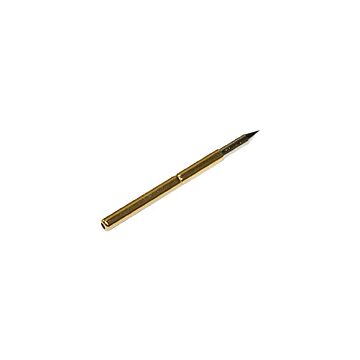

AEMC Instruments 5000.62 Pin-Set of 10 for Kelvin Probes 1A SpringPin - Set of 10 for Kelvin Probes 1A Spring Loaded
Order #: 5000.62
Mfg #: 5000.62
Availability: Ships in 1-2 weeks$37.80
| Measurement Range | ||||
| Range | Resolution | Accuracy @ 23 °C ± 5 °C | Measurement Current | Voltage Drop |
| 5 mΩ | 0.1 µΩ | ±(0.15 % +1.0 µΩ) | 10 A | 50 mV |
| 25 mΩ | 1 µΩ | ±(0.05 % +3 µΩ) | 10 A | 250 mV |
| 250 mΩ | 10 µΩ | ±(0.05 % +30 µΩ) | 10 A | 2500 mV |
| 2500 mΩ | 0.1 mΩ | ±(0.05 % +0.3 mΩ) | 1 A | 2500 mV |
| 25 Ω | 1 mΩ | ±(0.05 % +3 mΩ) | 100 mA | 2500 mV |
| 250 Ω | 10 mΩ | ±(0.05 % +30 mΩ) | 10 mA | 2500 mV |
| 2500 Ω | 100 mΩ | ±(0.05 % +300 mΩ) | 1 mA | 2500 mV |
| Temperature Measurement | 3 wire 100 Ω platinum RTD | |||
| Accuracy | ±0.5 °C | |||
| Resolution | 0.1 °C | |||
| Selectable Metal Type | Yes – Copper, Aluminum or Custom | |||
| Alarm Mode | Yes – 2 Alarms with High-Low trigger | |||
| Storage Memory | 1500 tests, supplied with DataView® software for download and reporting | |||
| Battery | Rechargeable NIMH battery pack 6 V, 8.5 A•h | |||
| Battery Life: 10A | ≥ 5000 tests typical | |||
| Battery Charger | 120/240 VAC ± 20 % (45 to 400) Hz | |||
| Auto Power OFF | When battery voltage <5.0 V | |||
| Overload Protection | 250 Vrms | |||
| Dimensions (L x W x H) |
(10.70 x 9.76 x 7.18) in (272 x 248 x 182) mm | |||
| Weight | 8.1 lbs (3.69 kg) | |||
| IP Rating | IP64 (with cover closed) IP53 (with cover open) | |||
| Altitude Operating | 2000 m | |||
| Operating Temperature | (14 to 131) °F (-10 to 55) °C & (10 to 80) % RH | |||
| Storage Temperature (without battery) | (-40 to 140) °F (-40 to 60) °C & (10 to 90) % RH | |||
| Safety | IEC/EN 61010-1 50V CAT III Pollution 2 | |||
