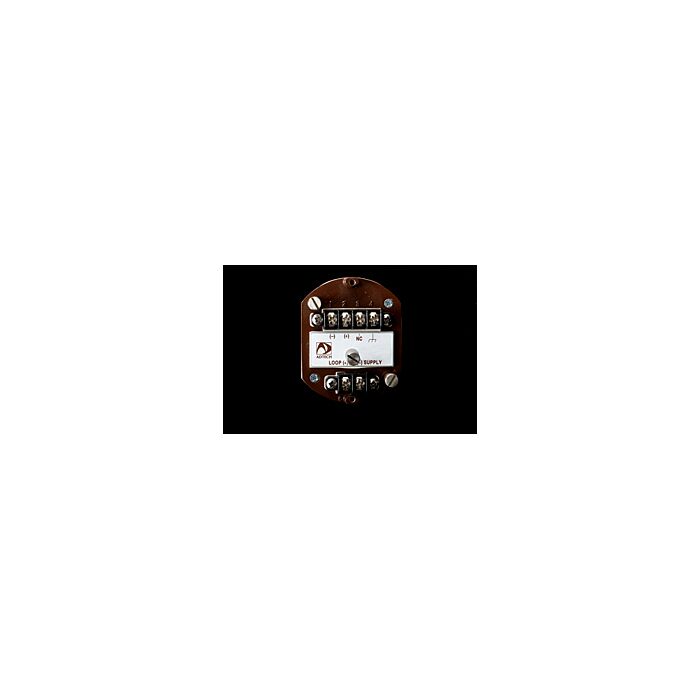

ADTECH MVX126 mV Isolated XMTR

Input Signals

• 0.5 mV to 100 mV span (Z in greater than 10 megohms)
• Zero Suppression: Up to 100% of the major range selected in 16 divisions of the coarse zero adjustment switch
• Span: From 0.5 mV to 100 mV full scale switch selectable. The coarse span switch adds 16 divisions to each major range.
• Upscale/Downscale Protection: Optional

Performance

• Calibrated Accuracy: 0.1%
• Independent Linearity: ±0.01% maximum, ±0.006% typical (14-bit digital linearity)
• Repeatability: ±0.005% max., ±0.002% typ.
• Span TC:±0.008% of span max/°C
• Load Effect:±0.005% zero to full load
• Output Ripple: 10 mV P/P maximum
• Response Time: 110 milliseconds (10 to 90% step response)
• Bandwidth: (-3 db): 3.2 Hz
• Temperature Range: -25° to 185°F (-31° to 85°C) operating; -40° to 200°F (-40° to 93°C) storage
• Power Supply Effect: ±0.005% over operating range

Product Highlights

• Power
• 8 to 42 VDC: Standard

Ordering Options:

• H 13 through H 23 Mounting
• LPI Loop Powered Indicator
• I 14 Voltage/Current Inputs
