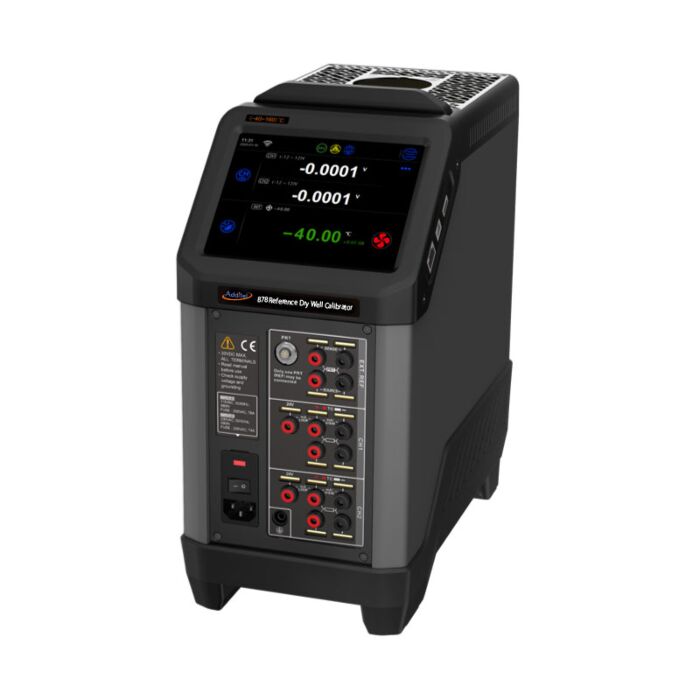

Additel ADT878 Reference Dry Well Calibrator, 160C to 1210C

Product Highlights

We are taking temperature calibration to the next level with the Additel 878 Reference Dry Well Calibrators. If you are looking for the best dry well on the market, then look no further! Additel’s commitment to continuous improvement, quality and time saving features are on full display in the ADT878 series. With three models to choose from, ranging from -40 to 700°C, you will find the perfect fit for your calibration needs. The Process Calibrator option adds an external reference input, a two-channel readout for UUT’s and a full complement of capabilities to help with everything from measuring temperature sensors, to calibrating thermocouples, self-calibrating the Reference Well and configuring HART transmitters. Each unit comes standard with a large touchscreen display, dual-zone control and Additel's commitment to the best customer service in the industry. We are certain that you will be blown away by the outstanding performance of these game-changing Reference Dry Wells!

Process Calibrator Option

Each model can be purchased with our Process Calibrator (PC) option. This option combines the many features found in a fully functional HART documenting process calibrator with the reference grade dry well. This option includes the ability to measure a reference PRT, with virtually any connection type, and two device under test channels which can measure, mA, voltage, switch, RTD or thermocouple. In addition to these measurement functions, this calibrator has full documenting capability of creating tasks, saving as found and as left results, as well as communication with HARTsmart transmitters. The process calibrator option also has an on board full HART communicator which allows users to read, configure and calibrate HART transmitters. The snap shot feature allows you to capture all information displayed on the screen with the push of a button. This optional add-on allows for data logging of all channels on an auto step function. Using a reference PRT, you can also control to the dry well set point using either the internal sensor or an external reference PRT.

Self Calibration

We believe using an external reference probe as your standard is the best way to perform your temperature calibration. But we also recognize this method is not always necessary or convenient and depending on the application, using the internal control sensor would be preferred. Traditionally, the internal control sensor has a wide accuracy which can largely be contributed to its long-term drift. We’ve built in a self-calibration feature allowing you to run an automated calibration of the internal control sensor using your external reference. With literally a few selections the calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improve its accuracy as you will not have to account for its long term drift when used as the reference.

Automation Features

Traditionally, dry wells were simply a stable heat source. To enhance the usability of our Reference Dry Wells, we've added automation features enabling you to utilize these amazing devices as a highly stable heat source, triple point of water maintenance apparatus, and annealing furnace. Combined with the ADT878-TPW-KIT, the ADT878-160 Reference Dry Well can be used to automatically realize and maintain a triple point of water cell. Traditional methods take time and practice to realize the triple point of water. Additel has now simplified this process with an automatic TPW realization feature. Simply insert the cell and PRT into the Reference Dry Well and run the procedure. The automation in the firmware will alert when the cell is super cooled. Remove the cell and give it a shake and now you can maintain the triple point in the reference well. This is very useful to check the drift of your PRT. For more information, please see our ADT878-TPW-KIT data sheet. When you purchase our 700°C Reference Dry Well, you will find our automatic annealing feature used to anneal PRTs. We have preconfigured annealing procedures that set the temperature annealing time and cool down rate. This feature, also lets you create your own annealing procedures.

• Temperature ranges:
  • 160: -40 to 320°F
  • 425: 91.4 to 797°F
  • 700: 91.4 to 1292°F
• Accuracy:
  • ±0.1°C at full range
  • ±0.2°C at Full Range
  • ±0.20°C at 33°C/425°C and ±0.25°C at 660°C
• Full HART communicator
• Wi-Fi and Bluetooth capable
• Color touch screen display
• Quick-Push connectors (PC Option)
• Set point control by reference
• Self calibration
• Built-in automatic annealing (ADT878-700 only)
• Reference level performance in accuracy, stability and uniformity
• Quick to temperature
• Two-channel readout measures RTDs and TCs, and provides task documentation
• Optional external temperature control
• Optional TPW kit for built-in automatic realization (ADT878-160 only)

Each Unit Includes

• Reference Dry Well and selected insert 1 pc.
• Power cable 1 pc.
• USB Cable 1 pc.
• Insert removal tool 1 pc.
• Thermal Shield (ADT878/PC-425/700only) 1 pc.
• Silica gel plugs (ADT878/PC-160 only) 1 set (3 pcs.)
• Insulation plug (ADT878/PC-160 only) 1 pc.
• Test leads (ADT878PC only) 2 sets (4 pcs.)
• ISO 17025 Accredited calibration
