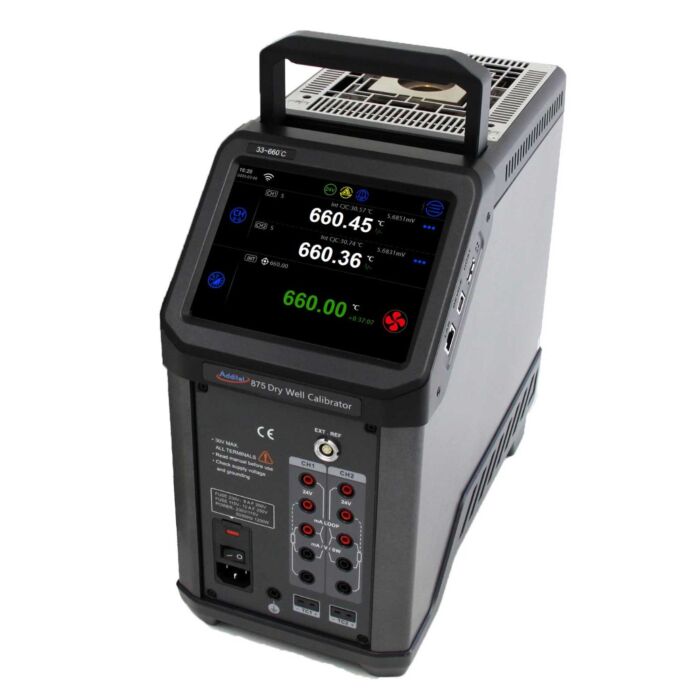

Additel ADT875PC-155-B-110V Dry Well Calibrator, -40C-155C 110V, Insert B

Product Highlights

If you are serious about portable temperature calibration tools, then you know a good dry well calibrator is more than just a stable heat source. The Additel 875 Series Dry Well Calibrators combine excellent performance in stability, radial and axial uniformity. And loading with speed, ruggedness and portability. But we don’t stop there! The Process Calibrator option adds the capabilities of a three-channel thermometer readout and a documenting process calibrator. We’ve also incorporated a unique option to select your own temperature range within the range of the model selected. We’re calling this the CYOR option or Choose Your Own Range option. When you purchase the CYOR option, you pick the upper and lower temperature range needed and we calibrate and optimize the dry well’s performance over your selected range. Each unit has a color touch screen display, dual-zone control, and much more. You are just going to love these new dry wells!

Process Calibrator Option

Each model offer has a Process Calibrator (PC) option. This process calibrator option combines the many features found in a fully functional HART documenting process calibrator with the temperature dry well. This option includes the ability to measure a reference PRT and two devices under test channels which can measure, mA, voltage, switch, RTD or thermocouple. In addition to these measurement functions, this calibrator has full documenting capability of creating tasks, saving as found and as left results, as well as reading, configuring and calibrating HART capable transmitters. The snap shot feature allows you to capture all information displayed on the screen with the push of a button. This optional add-on allows for data logging of all channels on an auto step function and a ramp function. By utilizing the reference PRT, you can select to control to the dry well set point using the internal sensor or the external reference PRT.

Self Calibration

We believe using an external reference probe as your standard is the best way to perform your temperature calibration. But we also recognize this method is not always necessary or convenient and depending on the application, using the internal control sensor would be preferred. Traditionally, the internal control sensor has a wide accuracy which can largely be contributed to its long-term drift. We’ve built in a self calibration feature allowing you to run an automated calibration of the internal control sensor using your external reference. With literally a few selections the calibration will run automatically giving you a fresh, traceable calibration of the control sensor which will improve its accuracy as you will not have to account for its long term drift when used as the reference.

Short Probe Kit

The Additel 110 series short probe calibration kit is designed to help users of our ADT875-155 (-40°C dry well) calibrate temperature probes and transmitters with short probe lengths. This all-inclusive kit comes with everything needed to perform more accurate and reliable calibration for those challenging short probes. Choose between our metric or imperial kit to fit your needs.

• Temperature Range: -40°C to 155°C
• Insert B
• 110V
• Process Calibrator Option
• Portable, rugged, and quick to temperature
• Metrology-level performance in stability, uniformity, accuracy and loading effect
• Dual-zone control
• Full HART field communicator
• Process calibrator option provides a multi-channel readout for a reference thermometer, RTDs and TCs, task documentation, and HART Communication
• Color touch screen display
• Choose your own range option
• Set point control by reference
• Self-calibration feature
• ISO 17025-accredited calibration w/data included

Each Unit Includes

• Dry well and selected insert 1 pc.
• Power cable 1 pc.
• USB Cable 1 pc.
• Insert removal tool 1 pc.
• Thermal Shield (ADT875/PC-350/660 only) 1 pc.
• Silica gel plug (ADT875/PC-155 only)1 set (3 pcs.)
• Insulation plug(ADT875/PC-155 only)1 pc.
• Test leads(ADT875PC only)2 sets (4 pcs.)
• ISO 17025 Accredited calibration 1 pc
