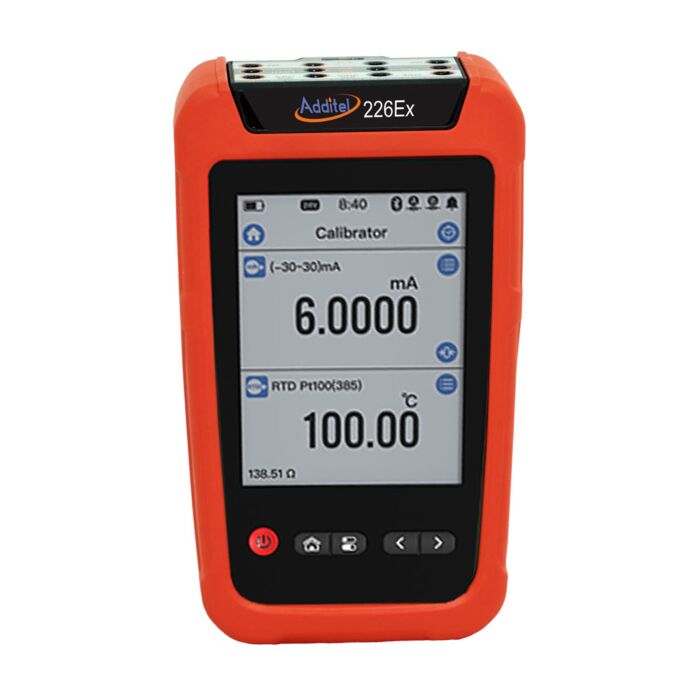

Additel ADT226EX Multifunction Process Calibrator

Product Highlights

Multifunction Process Calibrator, ADT226, Temperature and Pressure

Sourcing, simulating and measuring pressure, temperature and electrical signals
Built-in Barometer
Intrinsically safe models available (Ex)
Large Smartphone like touchscreen user experience
USB Type-C and Bluetooth communications
IP67 Rated
High Voltage Mesurement Capability (±300V AC)
True RMS Voltage Meter Capability
Dual channel pressure module ports
High Static Differential Pressure Measurement 0.002% FS
ISO 17025-accredited calibration w/data included

Each Unit Includes

9811Ex-X110V/220V external power adapter(Only for ADT226Ex )
9704Ex Chargeable Li-ion battery(Only for ADT226Ex )
9023 Test leads
9060 Pressure module connection cable
9052Ex Ex USB Cable type A to type C (For Ex models only)
9040 Hanging strap with magnet
9028 Multimeter Test Hook, Flexible Electronic Probe
ISO 17025 accredited calibration certificate

Additel's new Multi-functional Process Calibrator series takes portability, functionality, and accuracy to a whole new level and packages it with an intuitive and easy to use color touchscreen display. The ADT226 is a powerful yet cost effective process calibrator, which has an ATEX certified intrinsically safe option - ADT226Ex allowing you to perform calibration work in the harshest of environments. We're confident these new tools will not only meet your calibration requirements but will make metrology simple for you!

Easy-to-use Cellphone Like Interface

The ADT226 series brings an all new user interface to the world of process calibrators. With a menu driven interface and small size/weight, the ADT226 is the industry's smallest multifunctional process calibrator with an intrinsically safe version to boot (ADT226Ex). It adopts advanced human hand engineering design for the most convenient field handheld process calibrator available. The ADT226 has been developed with a powerful embedded operating system which solves common problems of other designs including slow response, cumbersome key operation, high power consumption and overall slow processing.

Accuracy

Additel's new and improved ADT226 series provides much improved accuracies including an electrical accuracy of 0.015% RD + 0.005% FS, high-static differential pressure mode accuracy to 0.002% FS and across the board improvements in temperature measurement accuracies.

Thermocouple Measurement Performance

The ADT226 series deliver highly improved thermocouple measurement capabilities by vastly improving the cold junction compensation (CJC) specifications and a much-improved stabilization time.

Time Saving Features

In addition to all the great features mentioned above, the ADT226 series is loaded with time saving features like our built in pressure and temperature converter, thermal calculator, wiring diagram guide for assisting with electrical connections, a built-in diagnostic center including intelligent alarm messaging and a real time error report and comprehensive self-testing to help our customers get the very most out of their investment in Additel calibration tools.

Portable and Robust

The demands of remote calibration work can be challenging. The ADT226 series is lightweight and highly portable and utilizes an advanced color LCD screen to help ensure you can easily see, even in the (Ex) intrinsically safe versions. All models in the ADT226 family have been designed with ruggedness and dependability in mind and meet IP67 standards with a 1-meter drop test, 4G vibration, xenon exposure and 130g steel ball drop testing of the display. Other environmental conditions have also been considered, such as temperature and humidity. To combat these external elements, Additel has designed a unique internal circuit design and process technology to allow for the utmost confidence in your critical calibration and measurement work.

Intrinsically Safe Option

The Additel 226Ex series calibrators have passed the most stringent testing by certified organizations to acquire intrinsically safe certificates, ATEX, IECEX, CSA and UKCA. The explosion-proof grade (Ex ia IIC T4 Ga), can be widely used in potentially explosive environments, such as oil and gas platforms, oil refineries, chemical and petrochemical plants, pharmaceutical industries, energy and gas processing industries. Each intrinsically safe calibrator has an advanced transflective color LCD display which has enhanced visibility when viewed in direct sunlight. No matter where your work takes you, these calibrators are up to the task.

Voltage Meter (RMS)

The Additel 226 non-Ex version is equipped with "true effective value" RMS measuring function, which can measure the RMS of various waveforms with no need to consider distortion or waveform parameters and different errors caused by different waveforms

Automated Tasks for Paperless Calibration Management

Additel 226 Series Calibrators come with a power documenting calibration task application which provides a turnkey solution for automation and paperless calibration management. Tasks are easily created for temperature, pressure, flow and loop instruments. Up to 1,000 documented tasks can be stored in the extensive on-board memory. Many tasks, when executed, are fully automated in data collection and performance validation, such as pass/fail and hysteresis calculations. All information can be integrated into Additel's ACal software for additional calibration management.

Targeted application features

The onboard applications provide a useful selection of features including high static differential pressure mode, pressure leak test, safety valve test, analog transmitter calibration, unit converter, thermal calculator, and snapshots to name a few. High static differential pressure mode uses two sensors, unique calculation technology to achieve a differential pressure measurement to 0.002% FS at high static pressures. The leak test will automatically calculate the pressure drop to determine a leak condition. The safety valve test is a specialized task which captures the exact pressure release point by taking 10 readings per second during a valve crack test. You will find this and much more as we continue to develop new apps at Additel.

Connectivity & Battery

Users can remotely connect mobile devices to the ADT226 via Bluetooth and Wi-Fi communication with an unobstructed distance up 20 meters. The included USB type-C comm port and cable provide a hard-wired communication option as well as charging for the removable Li-ion battery, which provides up to 35 hours of run time.

Accessories

Additel ADT161 Intelligent Digital Pressure Module

Intelligent Digital Pressure Module

Order #: ADT161

Mfg #: ADT161

Availability: Call for availability

$1,946.00

Qty
Additel 9060 Press Module Connection Cable
Press Module Connection Cable

Order #: 9060ADT

Mfg #: 9060

Availability:
In stock

$155.40

Qty
Additel 9080 Cold Junction Kit (TC Plug, Cable, S, R, B, K, J, T, E, N)
Cold Junction Kit (incl TC Plug, Cable, S,R,B,K,J,T,E,N)

Order #: 9080ADT

Mfg #: 9080

Availability: Ships in 2-3 weeks

$694.40

Qty
Additel 9704 Battery, rechargeable Li-ion polymer battery for Handhelds
Battery, rechargeable Li-ion polymer battery for Handhelds

Order #: 9704-ADDITEL

Mfg #: 9704

Availability: Ships in 2-3 weeks

$292.60

Qty
Additel 9811-US Power Adapter, external power adapter (US plug)
Power Adapter, external power adapter (US plug)

Order #: 9811-US

Mfg #: 9811-US

Availability: Ships in 2-3 weeks

$128.80

Qty
Additel 9906A Carrying case for handheld calibrators
Carrying case for handheld calibrators

Order #: 9906A

Mfg #: 9906A

Availability: Ships in 2-3 weeks

$564.20

Qty
Additel 9918-SC Soft Carrying Case
Soft Carrying Case

Order #: 9918-SC

Mfg #: 9918-SC

Availability:
In stock

$319.20

Qty
Additel 9530-NET Automatic Calibration Software with Asset Management
Additel/Acal Auto.Calibration Software w/Asset Management

Order #: 9530-ADDITEL

Mfg #: 9530-NET

Availability: Ships in 2-3 weeks

$6,477.80

Qty

Specifications

Electrical Specifications - Source Accuracy
Specifications	ADT226			ADT226Ex
Specifications	Range	Resolution	Accuracy	Range	Resolution	Accuracy
Voltage DC	0 to 15V	0.1 m 0.015%RDG+0.005%FS	0 to 10.5V	0.1 m	0.02%RDG+0.005%FS
Current DC	0 to 25 m	0.1 A 0.015%RDG+0.005%FS	0 to 25 m	0.1 A	0.02%RDG+0.005%FS
Resistance	0 to 400	1 m 0.015%RDG+0.005%FS	0 to 400	1 m	0.02%RDG+0.005%FS
Resistance	0 to 4000	10 m 0.015%RDG+0.005%FS	0 to 4000	10 m	0.02%RDG+0.005%FS
Frequency	0.01 to 50000.0 Hz	Auto range, 6-digit	0.005%RDG+5 on last digit6-digit 0.005%RDG+5 on last digit	0.01 to 50000.0 Hz	Auto range, 6-digit	0.005%RDG+5 on last digit6-digit 0.005%RDG+5 on last digit
Voltage m (TC)	-10 to 75 m	0.1 V	0.015%RDG + 0.005%FS	-10 to 75 m	0.1 V	0.02%RDG+0.005%FS
Pulse	0 to 9999999	1 N/A	0 to 9999999	1		N/A
Pulse	Optional rising edge and falling edge, minimum threshold voltage: 2.V
Loop power (mx 25m)	24V	N/A	±1V	20V	N/A	± 10%

Electrical Specifications - measurement Accuracy
Specifications	ADT226			ADT226Ex
Specifications	Range	Resolution	Accuracy	Range	Resolution	Accuracy
Voltage DC	-300 to 300 m	1 V	0.015% RDG + 0.005% FS	-300 to 300 m	1V	0.02% RDG + 0.005% FS
	-30 to 30V	0.1 m	0.015%RDG+0.005%FS	-30 to 30V	0.1 m	0.02% RDG + 0.005% FS
	Temperature Coefficient: ±5 ppmFS/°C (-10°C to 10°C and 30°C to 50°C)
	Impedance: -300 m to 300 m = > 100 m, -30V to 30V = >1 m
DC High Voltage	-3 to 3V	0.1 m	0.05% RDG + 0.01% FS	N/A
	-30 to 30V	1 m	0.05% RDG + 0.01% FS
	-300 to 300V	10 m	0.05% RDG + 0.01% FS
	Temperature coefficient: ±0.0025% FS/°CDC High Voltage N/A(-10°C to 10°C and 30°C to 50°C)
	The highest Input Voltage is 300V, IEC61010 30V CATII
	Common mode rejection: >100 dB (at 50 or 60 Hz)
	Impedance: > 4 m, DC coupling
AC High Voltage	V (40 to 500 Hz)	0.1 m	0.5% RDG + 0.05% FS	N/A
	3V (40 to 500 Hz)	1 m	0.5% RDG + 0.05% FS
	30V (40 to 500 Hz)	10 m	0.5% RDG + 0.05% FS
	Temperature coefficient: ±0.025% RD + 0.0025% FS /°C, -10°C to 10°C and 30°C to 50°C)
	The highest Input Voltage is 300V, IEC61010 30V CATII
	9% to 100% of range is suitable for the above accuracy indicators
	Impedance: >4 m, <100pF, AC coupling
Current DC	-30 to 30 m	0.1 A	0.015% RDG + 0.005% FS	-30 to 30 m	0.1 A	0.02% RDG + 0.005% FS
Current DC	Temperature Coefficient: ±5ppmFS/°C (-10°C to 10°C and 30°C to 50°C), Impedance: < 40
Resistance (4-Wire)	0 to 400	1 m	0.015% RDG + 0.005% FS	0 to 400	1 m	0.02% RDG + 0.005% FS
	0 to 4000	10 m	0.015% RDG + 0.005% FS	0 to 4000	10 m	0.02% RDG + 0.005% FS
	Temperature coefficient: ±5 ppmFS/°C (-10°C to 10°C and 30°C to 50°C)
	2-Wire + 50 m, 3-wire+ 10 m
	Excitation current: 0.25 m
Voltage m (TC)	-10 to 75 m	0.1 V	0.015% RDG + 0.005% FS	-10 to 75 m	0.1 V	0.02% RDG + 0.005% FS
	Temperature Coefficient: ±5ppmFS/°C (-10°C to 10°C and 30°C to 50°C)
	Impedance: >100 m
Frequency	0.01 to 50000 Hz	Auto range, 6-digit	0.005% RDG + 5 on last digit	0.01 to 50000 Hz	Auto range, 6-digit	0.005% RDG + 5 on last digit
	minimum threshold voltage: 2.5V
	Supported units: Hz, kHz, mz, CPm CPH, s, m, us
Pulse	0 to 9999999	1	N/A	0 to 9999999	1	N/A
Pulse	Optional rising edge and falling edge, minimum threshold voltage: 2.V
Switch	Support for dry or wet switch, Voltage range of 3 to 30V, response speed of < 10 m

General Specification
	ADT226	ADT226Ex
Operating Temperature	-10°C to 50°C
Specification guaranteed Temperature range	10°C to 30°C
Storage Temperature	-20°C to 70°C
Humidity	<95%, non-condensing
Power supply	6600mh, 23.8Wh lithium battery, charging time 4~6 hours, battery pack can be charged independently	4000mh 14.4Wh Explosion-proof lithium battery pack charging time 6~8 hours, battery pack can be charged independently
User interface	Icon drive menus	Icon driven menus with navigation buttons
Ports protection Voltage	5V mx	3V mx
Display	5.0 inch 480 x 800 m TFT LCD capacitive screen	4.4 inch 640 x 480 m color display capacitive screen
maximum altitude	3000 meters
European Compliance	CE mark
Electrical Connection	Ø4m sockets and flat mini-jack thermocouple socket
Size	6.97" x 4.13" x 2.04" (177 m x 105 m x 52 m)
Weight	1.6 lb (0.7 kg)	1.65 lb (0.75 kg)
Battery	Rechargeable Li-ion battery (included)
Battery Life	Typically 16 hours	Typically 35 hours
Battery Charge	11V/22V external power adapter included. Battery can be charged external to the unit. Typically charge time is 6-8 hours.
External pressure module	Dual channel serial plug, can connect two digital pressure modules
Warmup time	Full specification performance is achieved after a 10 minute warmup time
ROHS compliant	RoHS II Directive 2011/65/EU, EN50581:2012
Display rate	3 readings per second
Barometric Accuracy (Built-in barometer)	50Pa
IP protection Level	IP67, 1 meter drop test
Communication	Isolate USB-TYPEC (slVe), Bluetooth BLE
Calibration	ISO 17025 accredited calibration with data

Temperature Specification
Thermocouple measurement and Source Accuracy
	ADT226				ADT226Ex
Type	Standard	Temperature Range (°C)		Accuracy (°C)	Standard	Temperature Range (°C)		Accuracy (°C)
Type	Standard	Temperature Range (°C)		measure / Source	Standard	Temperature Range (°C)		measure / Source
S	IEC 584	-50 to 1768	-50~0	0.96	IEC 584	-50 to 1768	-50~100	0.96
			0~100	0.69			100~1000	0.69
			100~1768	0.64			1000~1768	0.73
R	IEC 584	-50 to 1768	-50~0	1.02	IEC 584	-50 to 1768	-50~0	1.03
			0~200	0.71			0~200	0.71
			200~1768	0.56			200~1768	0.65
B	IEC 584	0 to 1820	200~300	1.89	IEC 584	0 to 1820	200~300	1.9
			300~500	1.25			300~500	1.26
			500~800	0.78			500~800	0.79
			800~1820	0.55			800~1820	0.57
K	IEC 584	-270 to 1372	-250 to -200	0.97	IEC 584	-270 to 1372	-250 to -200	1.04
			-200 to -100	0.3			-200 to -100	0.32
			-100 to 600	0.18			-100 to 600	0.21
			600 to 1372	0.35			600 to 1372	0.43
N	IEC 584	-270 to 1300	-250 to -200	1.5	IEC 584	-270 to 1300	-250 to -200	1.58
			-200 to -100	0.44			-200 to -100	0.46
			-100 to 1300	0.3			-100 to 1300	0.37
E	IEC 584	-270 to 1000	-250~-200	0.54	IEC 584	-270 to 1000	-250~-200	0.59
			-200~-100	0.2			-200~-100	0.22
			-100~700	0.15			-100~700	0.18
			700~1000	0.2			700~1000	0.25
J	IEC 584	-210~1200	-210~-100	0.26	IEC 584	-210~1200	-210~-100	0.28
			-100~700	0.15			-100~700	0.19
			700~1200	0.25			700~1200	0.31
T	IEC 584	-270 to 400	-250~-100	0.74	IEC 584	-270 to 400	-250~-100	0.79
			-100~0	0.15			-100~0	0.16
			0~400	0.11			0~400	0.13
C	ASTmE988	0 to 2315	0 to 1000	0.35	ASTmE988	0 to 2315	0 to 1000	0.4
			1000 to 1800	0.62			1000 to 1800	0.73
			1800 to 2315	1.02			1800 to 2315	1.22
D	ASTmE988	0~2315	0~100	0.39	ASTmE988	0~2315	0~100	0.39
			100~1200	0.37			100~1200	0.43
			1200~2000	0.65			1200~2000	0.77
			2000~2315	1.03			2000~2315	1.24
G	ASTmE1751	0 to 2315	50~100	1.12	ASTmE1751	0 to 2315	50~100	1.12
			100~200	0.72			100~200	0.72
			200~400	0.45			200~400	0.46
			400~1500	0.37			400~1500	0.43
			1500~2315	0.77			1500~2315	0.92
L	DIN43710	-200 to 900	-200 to -100	0.15	DIN43710	-200 to 900	-200 to -100	0.16
			-100 to 400	0.13			-100 to 400	0.14
			400o 900	0.17			400o 900	0.2
U	DIN43710	-200 to 600	-200 to 0	0.28	DIN43710	-200 to 600	-200 to 0	0.29
U	DIN43710	-200 to 600	0 to 600	0.13	DIN43710	-200 to 600	0 to 600	0.15
Note: Internal CJC is ±0.15°C (-10°C to 50°C ambient Temperature)
Accuracy with external cold junction only, for internal cold junction add 0.15 (k=2)

RTD measurement and Source Accuracy
measure and Simulate	Temperature Range (°C)		Accuracy (°C)
measure and Simulate	Temperature Range (°C)		ADT226	ADT226Ex
PT10(385)	-200 to 850	-200~200	0.62	0.64
		200~600	0.77	0.82
		600~850	0.88	0.95
PT25(385)	-200 to 850	-200~200	0.29	0.31
		200~600	0.4	0.44
		600~850	0.47	0.54
PT50(3916)	-200 to 850	-200~200	0.18	0.2
		200~600	0.27	0.32
		600~850	0.34	0.4
PT100(385) PT100(391) PT100(3916) PT100(3926)	-200 to 850	-200~200	0.13	0.15
		200~600	0.21	0.26
		600~850	0.27	0.34
PT200(385)	-200 to 850	-200~200	0.34	0.12
		200~300	0.37	0.4
		300~600	0.46	0.51
		600~850	0.54	0.61
PT400(385)	-200 to 850	-200~0	0.17	0.06
		0~200	0.21	0.23
		200~600	0.3	0.35
		600~850	0.37	0.44
PT500(385)	-200 to 850	-200~200	0.18	0.2
		200~600	0.27	0.32
		600~850	0.34	0.4
PT1000(385)	-200 to 850	-200~200	0.13	0.15
		200~600	0.21	0.26
		600~850	0.27	0.34
Cu10(427)	-200~260	-200~260	0.59	0.61
Cu50(428)	-200~260	-200~260	0.15	0.17
Cu100(428)	-200~260	-200~260	0.1	0.12
Ni100(617) Ni100(618)	-60~180	-60~0	0.06	0.07
Ni100(617) Ni100(618)	-60~180	0~180	0.06	0.08
Ni120(672)	-80~260	-80~260	0.06	0.07
Ni1000	-50~150	-50~150	0.08	0.09

Technical Resources

Additel ADT226 and ADT226EX Datasheet
Additel ADT226 and ADT227 Series Selection Guide
Additel 226/227 User Manual
Additel 226Ex/227Ex User Manual
Achieving High Accuracy for High Static Differential Pressure Measurements White Paper
Additel 282/227/226 Battery MSDS
Additel 226Ex/227Ex/273Ex/260Ex Battery MSDS
Additel 226/227 Panel Mount Info

Additel ADT226EX Multifunction Process Calibrator, Intrinsically Safe

Product Highlights

Each Unit Includes

TRANSCAT CANADA INC

CUSTOMER SERVICE
