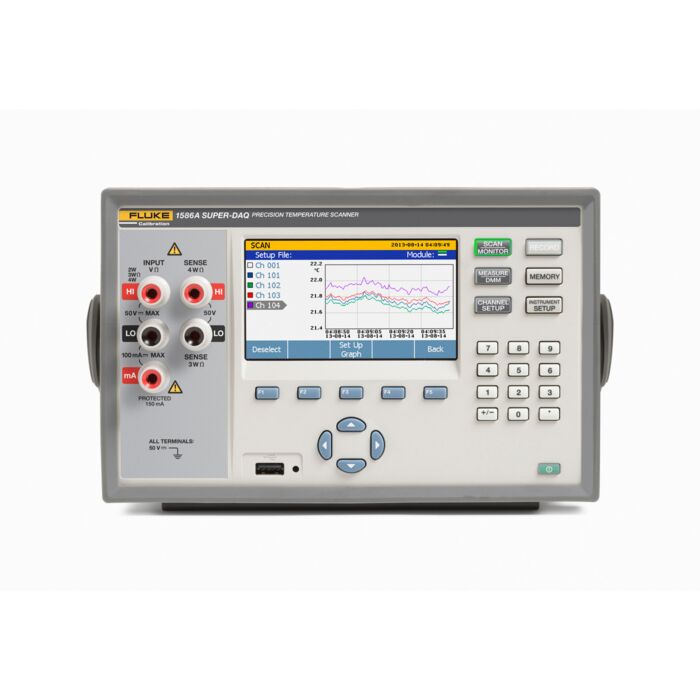

Fluke Calibration 1586A/1HC Super-DAQ with 1 High-Capacity Module (120V)

Super-DAQ with 1 High-Capacity Module (120V)

Order #: 1586A/1HC 120

Mfg #: 4409963

Skip to the beginning of the images gallery

$6,406.40

The 1586A Super-DAQ is the most accurate and flexible temperature data acquisition system on the market. It scans and records temperature, dc voltage, dc current, and resistance for up to 40 input channels and scan speeds as fast as 10 channels per second. The Super-DAQ can be configured for use as a multi-channel data logger in the factory or as a precision reference thermometer for benchtop sensor calibration in the lab.

Availability: Ships in 3-4 weeks

Choose Your Options:

New Purchase Calibration

None

Calibration without Data + $209.45

Calibration with Data + $290.47

Accredited Calibration with Data and Uncertainties + $397.49

Add Calibration

Qty

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Overview

Product Highlights

Measure thermocouples, PRTs, thermistors, dc voltage, dc current, and resistance
Best-in-class temperature measurement accuracy
- PRTs ± 0.005 °C (using external DAQ-STAQ Multiplexer)
- Thermocouples: ± 0.5 °C (using High-Capacity Module and internal CJC)
- Thermistors: ± 0.002 °C
Input channels: Up to 40 isolated universal inputs
Flexible configuration: Internal High-Capacity Module and/or DAQ-STAQ Multiplexer
Selectable scan speed: Up to 10 channels per second
Four modes of operation: Scan, Monitor, Measure, Digital Multimeter (DMM)
Real-time color trending: Chart up to four channels simultaneously
6 1/2 digit display resolution for dc voltage, dc current, and resistance
Current reversal minimizes thermoelectric effects, improving PRT/RTD measurement accuracy
Automated sensor calibration: Control Fluke Calibration temperature sources such as dry-wells or micro-baths for automated calibration routines
Data storage: Records up to 20 MB of data and setup files to internal non-volatile memory or to an external USB drive. Transfer data to a PC using the USB drive or LAN connection and view data in Microsoft® Excel
Data security: Administrator and user profiles for protecting settings and ensuring test traceability
Mx + B scaling and channel offset zero function
Alarms: Two independent, user-defined alarms for each channel indicate when an upper or lower range has been exceeded
Supported by TQSoft and TQAero thermal validation software for FDA 21 CFR Part 11 and AMS 2750 compliant data collection

Webinars

Automating and Documenting Temperature Calibration Webinar with Fluke Calibration

Specifications

General Specifications
Mains Voltage	100 V Setting: 90 V to 110 V 120 V Setting: 108 V to 132 V 220 V Setting: 198 V to 242 V 240 V Setting: 216 V to 264 V
Frequency	47 Hz to 440 Hz
Power Consumption	36 VA peak (24 W average)
Environment Temperature	Operating: 0 °C to 50 °C Full accuracy: 18 °C to 28 °C Storage: -20 °C to 70 °C Warm-up: 1 hour to full accuracy specifications
Relative Humidity (non-condensing)	Operating:  0 °C to 30 °C <80 %;                    30 °C to 50 °C <50 % Storage: -20 °C to 70 °C <95 %
Altitude	Operating: 2,000 m Storage: 12,000 m
Vibration and Shock	Complies with MIL-PRF-28800F Class 3
Channel Capacity	Total analog channels: 45 Voltage/resistance channels: 41 Current channels:  5 Digital I/O: 8 bits Totalizer: 1 Alarm outputs: 6 Trigger input: 1
Input Protection	50 V all functions, terminals and ranges
Math Channels	Number of channels: 20 Operations: sum, difference, multiply, divide, polynomial, power, square root, reciprocal, exponential, logarithm, absolute value, average, maximum, minimum
Triggers	interval, external (trigger input), alarm, remote (bus), manual, automated test
Memory	Scan data RAM: 75,000 readings with timestamp Data/Setup flash memory: 20 MB
USB Host Port	Connector type: Type A Function: Memory File system: FAT32 Memory capacity: 32 GB
USB Device Port	Connector type: Type B Class: Instrument Function: Control and data transfer Command protocol: SCPI
LAN	Function: Control and data transfer Network protocols: Ethernet 10/100, TCP/IP Command protocol: SCPI
RS-232	Connector: D-sub 9 pin (DE-9) Baud rates: 1200, 2400, 4800, 9600, 19200, 38400 Function: Temperature source control output
Dimensions	Height: 150 mm Width: 245 mm Depth: 385 mm Weight: 6 kg (typical configuration) Shipping Weight: 9.5 kg (typical configuration)
Conformity	CE, CSA, IEC 61010 3rd ed.
